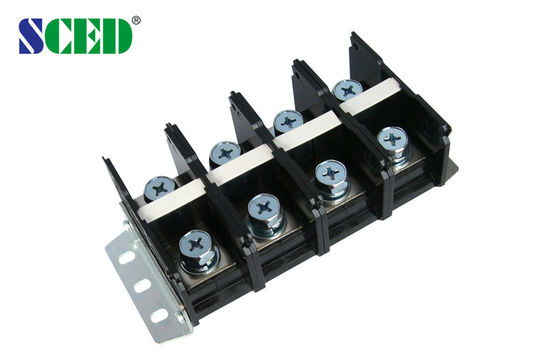

32mm Right Angle High Current Terminal Block For Power Supply 600V 175A

32mm Right Angle High Current Terminal Block For Power Supply 600V 175A

  • 32mm Right Angle High Current Terminal Block For Power Supply 600V 175A
32mm Right Angle High Current Terminal Block For Power Supply 600V 175A
পণ্যের বিবরণ:
Place of Origin: Shenzhen, China
পরিচিতিমুলক নাম: SCED
সাক্ষ্যদান: UL, CE
Model Number: TR175-01-BM0
প্রদান:
Minimum Order Quantity: 500
মূল্য: Get latest price
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T
Supply Ability: 1KK poles each monthly
যোগাযোগ
বিস্তারিত পণ্যের বর্ণনা
Applications: PCB,Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control Color: Black
Number of Contacts: Any Poles Available Pitch: 32.00mm
Rated Current: 175A Rated Voltage: 600V
Type: High Current Barrier Terminal Block, Power terminal blocks, Electrical terminal Blocks Wire Range: 3/0-20
লক্ষণীয় করা:

wiring terminal blocks

,

pcb wire terminals

32mm Right Angle High Current Terminal Block For Power Supply 600V 175A



Standard color: Black. Other colors also available, please refer to below How to Order and select the color

you want.

■Right angle wire inlet;  □Vertical wire inlet;  □45 degree wire inlet

■Single Level;  □Double levels;  □Triple levels

Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks





How to order:

32mm Right Angle High Current Terminal Block For Power Supply 600V 175A 0





Applications:



PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,

Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military,

Elevator, etc..





Parameter and Drawing Specifications:



UL Technical Data

B

C

D

Rated Voltage / Current              V/A

600 / 175

600 / 175



Wire Range                       AWG

3/0-20

3/0-20



IEC Technical Data



Overvoltage Category

Contamination Class

3

2

2

Rated Voltage / Current              V/A

800 / 175

1000 / 175

1000 / 175

Rated Surge Voltage                 KV

8

8

8

Rated Connecting Capacity           mm2

80

Material



Insulation Material / Inflammability Class

PC / UL94, V-0

Terminal / Plating

Brass / Nickel Plated

Screw / Plating

Steel / Zinc Plated

Other Data



Stripping Length                    mm

14-18

Screw / Torque                    / lbf.in

M8 / 31-40





32mm Right Angle High Current Terminal Block For Power Supply 600V 175A 1





Competitive Advantage:



1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand
