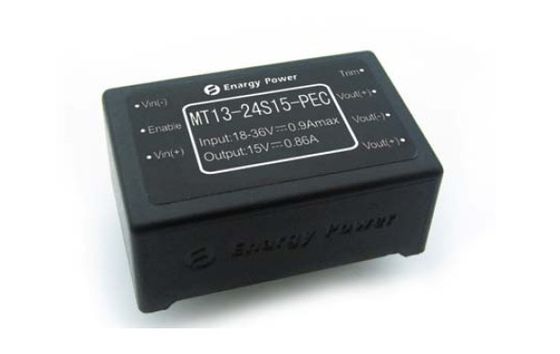

Military DC-DC Converters 13W Output 15V Isolation power supply MT13-24S15-PEC

Military DC-DC Converters 13W Output 15V Isolation power supply MT13-24S15-PEC

  • Military DC-DC Converters 13W Output 15V Isolation power supply MT13-24S15-PEC
Military DC-DC Converters 13W Output 15V Isolation power supply MT13-24S15-PEC
পণ্যের বিবরণ:
Place of Origin: China
পরিচিতিমুলক নাম: Enargy
Model Number: MT13-24S15-PEC
প্রদান:
Minimum Order Quantity: 1pcs
মূল্য: Negotiation
Delivery Time: 1-8 Weeks
Payment Terms: Negotiation
Supply Ability: 1000Pcs/week
যোগাযোগ
বিস্তারিত পণ্যের বর্ণনা
লক্ষণীয় করা:

military power supplies

,

dc to dc converter module

DC-DC Converters 13W Output 15V MT13-24S15-PEC





Key Features

Output power: 13W

Wide input range:18-36Vdc

High conversion efficiency: Up to88%

Line regulation to ±0.5%

Load regulation to ±0.5%

Fixed operating frequency

Isolation voltage :1500V

Enable (ON/OFF) control

Output over-voltage protection

Output over-load protection

Hiccup mode short circuit protection

Over-temperature protection

Input under-voltage lock-out

Output voltage trim -5~+10 % Vout



Product Overview

These DC-DC converter modules use advanced powerprocessing, control and packaging technologies to providethe performance, flexibility, reliability and cost effectivenessof a mature power component. High frequency Active Clampswitching provides high power density with low noise andhigh efficiency.



Product’s Introduction

The MT series is an independently regulated single output converter that uses the industry nonstandard brick packagesize. Integral PCB transformer/inductor is used for all models in this series. This new design technique has greatlyimproved the magnetic coupling, reduced switching spike and provided performance consistency. It also streamlines theproduction process by completely eliminating the hand-wind magnetic assembly process from production lines.



Part Numbering — MT13‐24S15‐PEC



Military DC-DC Converters 13W Output 15V Isolation power supply MT13-24S15-PEC 0

1. Electric Characteristics

Electrical characteristics apply over the full operating range of input voltage, output load and base plate temperature,

unless otherwise specified. All temperatures refer to the operating temperature at the center of the base plate. All data

testing at Ta=25oC except especial definition.



1.1 Absolute Maximum Ratings

Parameter Min Typ Max Units Notes
Input Voltage     45 Vdc Continuous, non-operating
    36 Vdc Continuous, operating
    45 Vdc Operatingtransient protection,<100mS
Isolation voltage     2000 Vdc Input to output
Operating Temperature -55   100
Storage Temperature -65   125
Enable to Vin- Voltage -0.3   10 Vdc


1.2 Input Characteristics

Parameter Min Typ Max Units Notes
Input Voltage Range 18 24 36 Vdc Continuous
Under-Voltage Lockout   17 17.5 Vdc Turn-on Threshold
16 16.5   Vdc Turn-off Threshold
Maximum Input Current     0.9 A Full Load;9Vdc Input
Efficiency   88   % Full load, derating input voltage.Figures 1-4
Dissipation   0.4   W No load
Disabled Input Current   7   mA Enable pin low

Recommend External Input

Capacitance

  100   μF Typical ESR 0.1-0.2Ω



1.3 Output Characteristics

Parameter Min Typ Max Units Notes
OutputVoltageSetpoint 14.85 15.00 15.15 Vdc Nominal input; No load
Output Voltage Range 14.75 15.00 15.25 Vdc Min. load to max load
Output CurrentRange 0   0.87 A Subject to thermal derating; Figures 5 - 7
Line Regulation   ±0.02 ±0.50 % Low line to high line; Full load
Load Regulation   ±0.02 ±0.50 % Min. load to full load; nominal input
TemperatureRegulation   ±0.002 ±0.02 % / °C Over operating temperature range
Current Limit 0.91 1.1 1.3 A Output voltage 95% of nominal
Short Circuit Current 1   3 A Output voltage <250 mV
Ripple (RMS)   15   mV Nominalinput;Fullload;20MHzbandwidth; Figure 8
Noise(Peak-to-Peak)   75   mV
Maximum Output Cap.     1300 μF Nominal input; Full load

Recommend External

Output Capacitance

  100   μF Nominal input; Full load
Output Voltage Trim -5   +10 % Nominal input; Full load



1.4 Dynamic Response Characteristics

Parameter Min Typ Max Units Notes

Change In Output Current

(di/dt= 0.1A/μs)

  150   mV 50%to75%to50%Ioutmax;Figure11
ChangeInOutputCurrent(di/dt= 0.5A/μs)   150   mV 50%to75%to 50% Iout max; Figure 12
Settling Time   200   µS To within 1% Vout nom.
Turn-on Time   10   mS Full load; Vout=90% nom. Figure 9
Shut-down Fall Time   1   mS Full load; Vout=10% nom. Figure 10
Output Voltage Overshoot   2   %



1.5 Functional Characteristics

Parameter Min Typ Max Units Notes
Switching Frequency 180 200 250 KHz Regulation stage and Isolation stage
Trim(Pin7)         See part 7.2 Voltage Trim(Pin7)
Output Voltage Trim     10 % Trim Up, Trim Pin to (-) Vout.
    5 % Trim Down, Trim Pin to (+) Vout.
Enable(ON/OFF)Control(Pin2)         See part 7.1

Enable Voltage

Enable Source Current

  5 10 Vdc Enable pin floating
    0.5 mA

Enable (ON/OFF) Control

Positive Logic

2.5   10 Vdc ON control, Logic high or floating
0.5   1.5 Vdc OFF control, Logic low

Output Over-Voltage

Protection

  120   % Min.load,VoltageLimitThreshold
Over-Load Protection 105 130 150 % Current-Mode, Pulse by Pulse CurrentLimit Threshold,(%Rated Load)
Short-Circuit Protection     65 mΩ Type:HiccupMode,Non-Latching,Auto-Recovery,Threshold,Short-CircuitResistance

Over-Temperature

Protection

  105

Type: Non-Latching, Auto-Recovery;

Threshold, PCB Temperature

  15   Hysteresis



1.6 Isolation Characteristics

Parameter Min Typ Max Units Notes
Isolation Voltage 1500     Vdc Input to Output
1500     Vdc Input to Base
500     Vdc Output to Base
Isolation Resistance 10     MΩ At 500Vdc to test it when atmosphericpressure and R.H. is 90%
Isolation Capacitance   1000   pF



2. General Characteristics

Parameter Min Typ Max Units Notes
Weight   0.7(20)   Oz (g) Encapsulated
MTBF ( calculated ) 1     MHrs TR-NWT-000332; 80% load,300LFM,40℃ Ta



3. Environmental Characteristics

Parameter Min Typ Max Units Notes
Operating Temperature -55   +100 Extended, base plate temperature
Storage Temperature -55   +125 Ambient
Temperature Coefficient     ±0.02 %/℃
Humidity 20   95 %R.H. Relative Humidity, Non - Condensing



4. Standards Compliance

Parameter Notes
UL/cUL60950
EN60950
GB4943
Needle Flame Test (IEC 695-2-2) Test on entire assembly; board & plastic components UL94V-0 compliant
IEC 61000-4-2



5. Qualification Specification

Parameter Notes
Vibration 10-55Hz sweep, 1 min./sweep, 120 sweeps for 3 axis
Mechanical Shock 100g min, 2 drops in x and y axis, 1 drop in z axis
Cold(in operation) IEC60068-2-1 Ad
Damp heat IEC60068-2-67 Cy
Temperature Cycling -40°C to 100°C, ramp 15°C/min., 500 cycles
Power/Thermal Cycling Vin = min to max, full load, 100 cycles
Design Marginality Tmin-10°C to Tmax+10°C, 5°C steps, Vin = min to max, 0-105% load
Life Test 95% rated Vin and load, units at derating point, 1000 hours
Solderability IEC60068-2-20



6. Typical Wave And Curves



Military DC-DC Converters 13W Output 15V Isolation power supply MT13-24S15-PEC 1Military DC-DC Converters 13W Output 15V Isolation power supply MT13-24S15-PEC 2



Figure 1: Efficiency at nominal output voltage vs. loadcurrent for minimum, nominal, and maximum input voltageat 25°C.

Figure 2: Efficiency at nominal output voltage and 60%rated power vs. airflow rate for ambient air temperatures of25°C, 40°C, and 55°C (nominal Vin).



Military DC-DC Converters 13W Output 15V Isolation power supply MT13-24S15-PEC 3Military DC-DC Converters 13W Output 15V Isolation power supply MT13-24S15-PEC 4



Figure 3: Power dissipation at nominal output voltage vs.load current for minimum, nominal, and maximum inputvoltage at 25°C.

Figure 4: Power dissipation at nominal output voltage and60% rated power vs. airflow rate for ambient airtemperatures of 25°C, 40°C, and 55°C (derating inputvoltage).





Military DC-DC Converters 13W Output 15V Isolation power supply MT13-24S15-PEC 5Military DC-DC Converters 13W Output 15V Isolation power supply MT13-24S15-PEC 6



Figure 5: Maximum output power derating curves vs.ambient air temperature for airflow rates of 0 LFM through400 LFM with air flowing from pin 1 to pin 3 (rating inputvoltage).

Figure 6: Maximum output power-derating curves vs.ambient air temperature for airflow rates of 0 LFM through400 LFM with air flowing from input to output (rating inputvoltage).



Military DC-DC Converters 13W Output 15V Isolation power supply MT13-24S15-PEC 7Military DC-DC Converters 13W Output 15V Isolation power supply MT13-24S15-PEC 8



Figure 7: Thermal plot of converter at 0.86 amp load current(13W) with 25°C at no flowing.

Figure 8: Output voltage ripple at nominal input voltage andrated load current (50 mV/div). Load capacitance: 1μFceramic capacitor and 10μF tantalum capacitor. Bandwidth:20 MHz..



Military DC-DC Converters 13W Output 15V Isolation power supply MT13-24S15-PEC 9Military DC-DC Converters 13W Output 15V Isolation power supply MT13-24S15-PEC 10



Figure 9: Turn-on transient at full load (resistive load) (10ms/div).Input voltage pre-applied. Ch 1: Vout (5V/div) Ch2: ON/OFF input(2V/div).

Figure 10: Shut-down fall time at full load (200 ms/div).Ch 1: Vout (5V/div)Ch 2: ON/OFF input (2V/div)



Military DC-DC Converters 13W Output 15V Isolation power supply MT13-24S15-PEC 11Military DC-DC Converters 13W Output 15V Isolation power supply MT13-24S15-PEC 12



Figure 11: Output voltage response to step-change in loadcurrent (50%-75%-50% of Iout(max); dI/dt = 0.1A/μs). Loadcap: 10μF, 100 mW ESR tantalum capacitor and 1μFceramic capacitor. Ch 1: Vout (200mV/div).

Figure 12: Output voltage response to step-change in loadcurrent (50%-75%-50% of Iout(max): dI/dt = 0.5A/μs). Loadcap: 220μF, 30 mW ESR tantalum capacitor and 1μFceramic cap. Ch 1: Vout (200mV/div).



7. Physical Information

7.1 Mechanical Outline



Military DC-DC Converters 13W Output 15V Isolation power supply MT13-24S15-PEC 13

Notes:

1. All pins are 0.024” (0.6mm) dia. without shoulder.

2. Pin4 and Pin6 are parallel connection. The user could achieve the function Vout(+) whether connect either two pin or

both.

3. Tolerances: x.xx ±0.02 in. (x.x ±0.5mm) ,x.xxx ±0.010 in. (x.xx ±0.25mm)



7.2 Pin Designations

Pin No. Name Function
1 Vin(-) Negative Input voltage
2 Enable TTL input to turn converter on and off, referenced to Vin(-), with internal pull up.
3 Vin(+) Positive Input voltage
4 Vout(+) Positive Output Voltage
5 Vout(-) Negative output voltage
6 Vout(-) Positive output voltage
7 Trim Output voltage trim. Leave TRIM pin open for nominal output voltage.
