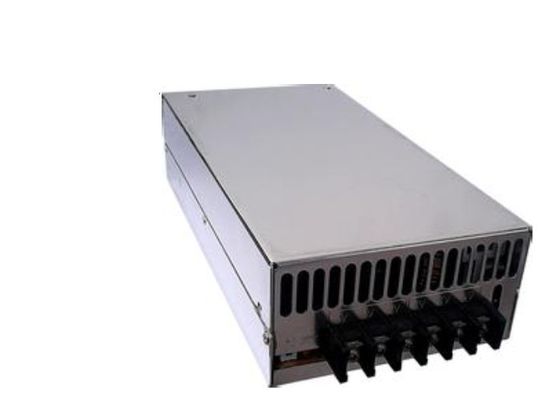

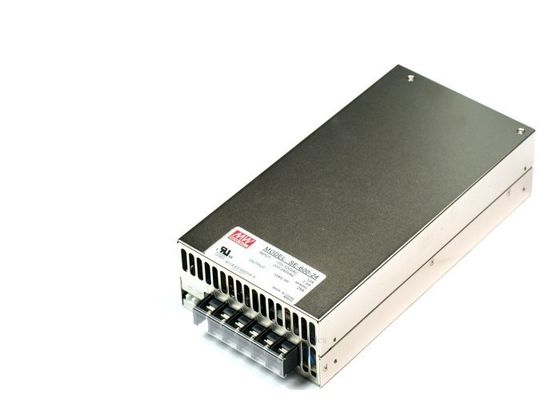

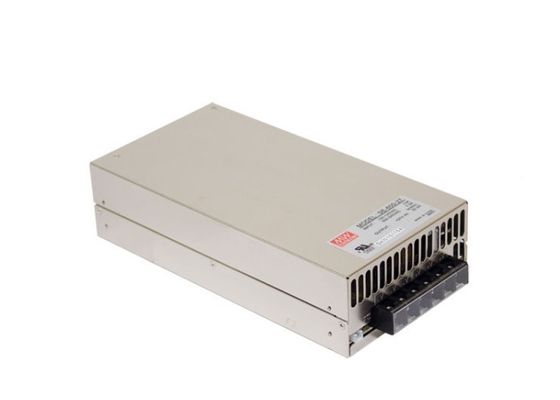

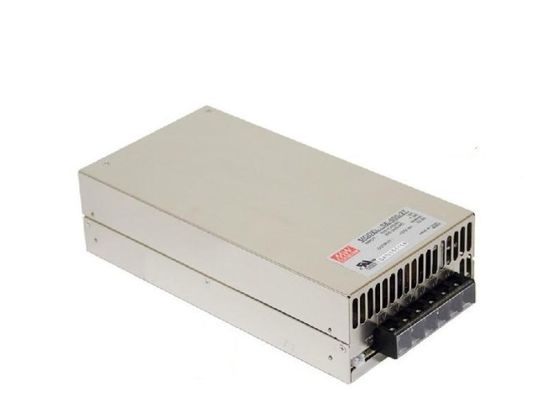

600 watt AC DC LED Power Supply LED Light Driver 12V 24V 5V

600 watt AC DC LED Power Supply LED Light Driver 12V 24V 5V

  • 600 watt  AC DC LED Power Supply LED Light Driver 12V 24V 5V
  • 600 watt  AC DC LED Power Supply LED Light Driver 12V 24V 5V
  • 600 watt  AC DC LED Power Supply LED Light Driver 12V 24V 5V
  • 600 watt  AC DC LED Power Supply LED Light Driver 12V 24V 5V
600 watt  AC DC LED Power Supply LED Light Driver 12V 24V 5V
পণ্যের বিবরণ:
Place of Origin: China
পরিচিতিমুলক নাম: Meanwell
সাক্ষ্যদান: CE,ROHS, TUV, UL
Model Number: SE-600 Single Output Switching Power Supply
প্রদান:
Minimum Order Quantity: Negotiable
মূল্য: Negotiable
Packaging Details: Export Standard Packaging
Delivery Time: 5-7 work days after receiving deposit
Payment Terms: Ex works
Supply Ability: 30000pcs/month
যোগাযোগ
বিস্তারিত পণ্যের বর্ণনা
DIMENSION: 225*124*50mm (L*W*H) PACKING: 1.25Kg;12PCS/16Kg/1CUFT
SETUP, RISE TIME: 1000ms, 50ms/230VAC 1000ms, 50ms/115VAC at full load HOLD UP TIME (Typ.): 20ms/230VAC 16ms/115VAC at full load
VOLTAGE RANGE: 90 ~ 132VAC / 180 ~ 264VAC selected by switch 254 ~ 370VDC FREQUENCY RANGE: 47 ~ 63Hz
DC Voltage: 5V, 12V, 15V, 24V, 27V, 36V, 48V SAFETY STANDARDS: UL60950-1 approved
লক্ষণীয় করা:

LED Light Power Supply

,

LED Light Driver



600w Meanwell AC DC LED Power Supply LED Light Driver 12V 24V 5V Single Output​​



Enclosed SE Series 100w-450w Miniature Features:
1. AC input selectable by switch
2. Withstand 300VAC surge input for 5 seconds (SE-200/350)
3. Protections: Short circuit / Overload / Over voltage / Over temperature (except for SE-100)
4. Forced air cooling by built-in DC fan (SE-350/450)
5. Built-in fan ON/OFF control (SE-350)
6. Built-in constant current limiting circuit (SE-200/350)
7. Withstand 5G vibration test (SE-200/350)
8. Built-in remote sense function (SE-450)
9. 100% full load burn-in test
10. LED indicator for power on
11. 2 years warranty



Enclosed SE Series 600W~1500W Single Output Features:
1. AC input selectable by switch (SE-600/1000)
AC input 180~264VAC only (SE-1500)
2. Protections: Short circuit / Overload / Over voltage / Over temp.
3. Forced air cooling by built-in DC fan

4. Built-in remote sense function

5. DC OK, remote ON/OFF control (SE-1000/1500)

6. 100% full load burn-in test

7. LED indicator for power on

8. 2 years warranty


AC input voltage range .........90~132VAC / 180~264VAC selected by switch(600W/1000W); 180~264VAC(1500W)
AC inrush current .................Cold start, 60A at 230VAC(600W/1500W)  Cold start, 55A at 230VAC(1000W)
DC adjustment range ............±10% rated output voltage
Overload protection ..............105%~125% Shut down o/p voltage, re-power on to recover
Over voltage protection..........115%~140% rated output voltage
Withstand voltage ................I/P-O/P: 3kVAC, I/P-FG: 1.5kVAC, 1 minute
Working temperature ............-20~+60°C(600W/1000W); -20~+70°C(1500W)
Safety standards ..................UL60950-1 approved
EMC standards ....................Design refer to EN55022 class B
Connection ..........................Terminal block with cover for input and output (SE-1000/1500: copper pillars for output)

Enclosed Switching Power Supplies
SE Series:
Single Output Switching Power Supply: SE-100, SE-200, SE-350, SE-450, SE-600, SE-1000, SE-1500


Quick Details of 600w Single Output LED Switching Power Supply:

600W-Single Output
Model No. Output Tol. R&N Effi.
SE-600-5 5V, 0~100A ±2% 150mV 78%
SE-600-12 12V, 0~50A ±1% 150mV 83%
SE-600-15 15V, 0~40A ±1% 150mV 84%
SE-600-24 24V, 0~25A ±1% 150mV 87%
SE-600-27 27V, 0~22.2A ±1% 150mV 87%
SE-600-36 36V, 0~16.6A ±1% 200mV 87%
SE-600-48 48V, 0~12.5A ±1% 200mV 88%



NOTE:
1. All parameters not specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.


SE-600 Series Datasheet:



600 watt  AC DC LED Power Supply LED Light Driver 12V 24V 5V 0

600 watt  AC DC LED Power Supply LED Light Driver 12V 24V 5V 1





SE Series SE-600 Models Available:
SE-600-5
SE-600-12
SE-600-15
SE-600-24

SE-600-27

SE-600-36

SE-600-48
