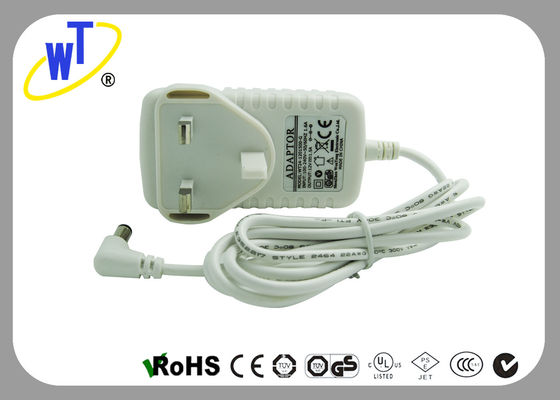

50Hz / 60Hz Wallmount Universal DC Power Adapter with 1.8M Cable

50Hz / 60Hz Wallmount Universal DC Power Adapter with 1.8M Cable

  • 50Hz / 60Hz Wallmount Universal DC Power Adapter with 1.8M Cable
50Hz / 60Hz Wallmount Universal DC Power Adapter with 1.8M Cable
পণ্যের বিবরণ:
Place of Origin: China
পরিচিতিমুলক নাম: WT
সাক্ষ্যদান: UL/CCC/SAA/ROHS
Model Number: WT1201500
প্রদান:
Minimum Order Quantity: 500 pcs
মূল্য: negotiation
Packaging Details: PE bag+white box/PE bag without white box
Delivery Time: 20 Days
Payment Terms: T/T(30% in advance, 70% the balance must be paid before the delivery)
Supply Ability: 8000 PCS/Day
যোগাযোগ
বিস্তারিত পণ্যের বর্ণনা
color: white jack: right angle/straight
লক্ষণীয় করা:

portable power adapter

,

smart power adapter



50Hz / 60Hz Wallmount Universal DC Power Adapter with 1.8M Cable



Quick Details:

  • Input voltage: 100 to 240V AC, 50/60Hz
  • Output voltage: 12VDC 1.5A
  • Power: 18W
  • Plug type: UK plug-in, 3 pins



Description:



1. Surface cosiness, small size and convenient carrying

2. Low cost, high reliability and all cases are covered by ultrasonic

3. Built-in OVP, OCP and SCP

4. Universal input voltage:

a. I/P voltage 100-240VAC; 50/60Hz

b. Turn on delay time≤3s

c. Inrush current≤30A/24V AC

5. O/P:

a. High accuracy and low noice

b. Hold up time ≥20mS

6. Operation model: CV

7. Environment:

a. Operation temperature: 0°C-40°C;5%-90%RH

b. Storage temperature: -20°C-85°C;5%-95%RH

8. Cooling: Natural cooling

9. Energy standard: CEC/ERP

10. Safety standard: IEC/EN60950

11. Insulation: hi-pot, 3,000V AC 60S 10mA

12. Leakage current: 0.25mA (maximum)

13. MTBF: MIL-HDBK-217F, full load, 25, more than 50,000 hours

14. RoHS compliant



Warranty:

12 months

Certification:

UL/CCC/SAA/ROHS

Usage:

Beauty products

Packaging:



a. PE bag+ white box

b. PE bag without white box

Place of Origin:

China(Mainland)

Brand Name:

WT

Model Numeber:

WT1201500

MOQ:

500 pcs

Delivery Time:

20 Days

Payment Terms:

T/T(30% in advance, 70% the balance must be paid before the delivery)

Supply Ability:

8000 PCS/Day



Model I/P Condition O/P Condition Efficiency R/N Max Power
Voltage Current Regulation
Unit:(V) Unit:(A) Line(%) Load(%) min% (mVp-p) W
WTxxxyyyy 100-240V
AC 50/60Hz
1.6A Max
3.3V-6.0V 3.00 2% 5% 76 38 18
6.1V-9.0V 2.50-3.00 2% 5% 82 38 24
9.1V-12.0V 2.00-2.50 2% 5% 82 38 24
12.1V-24.0V 1.00-2.00 2% 5% 82 38 24
24.1V-36.0V 0.66-1.00 2% 5% 82 38 24
36.1V-48.0V 0.50-0.66 2% 5% 82 38 24



Our Advantages:

  • Compact size ,light weight
  • 100%full-load burning test
  • Installed with EMI filter ,minimum wave
  • Professional&experienced engineers
  • Good quality
  • Competitive price
  • Intime service
  • Free samples available
  • About 10 years experiences
  • OEM/ODM services are highly welcome
  • Flexible to meet dynamic requirements
  • High technology
  • Short Lead time
  • AC input power suitable for the world
  • Soft-start current can reduce the AC input impact efficiency
  • With short-circuit and overload protection



Some Using Details:

  • Power supply must be connected to a working electrical AC line with a voltage of 100-240V.
  • Power supply can only be installed indoors.
  • The power supply should be installed in a location with good airflow
  • Do not install power supply in locations with high humidity, dust or strong direct sunlight.
  • Connect power supply to the supplied unit.
