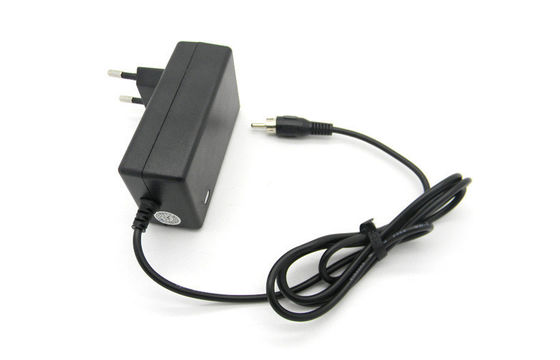

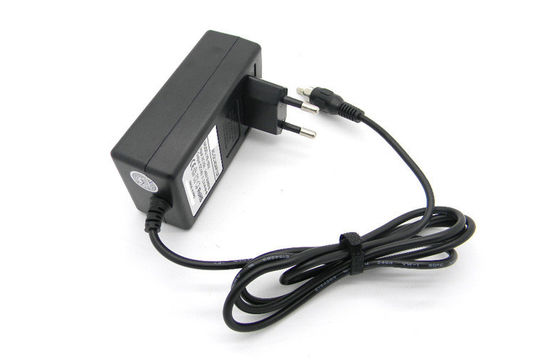

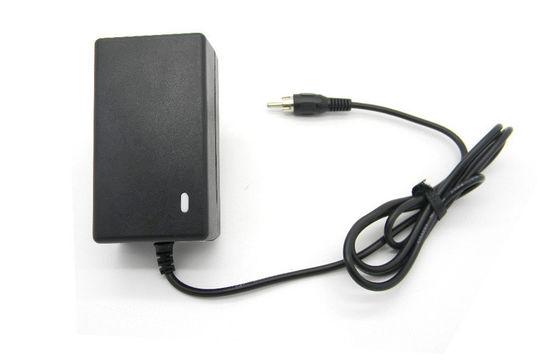

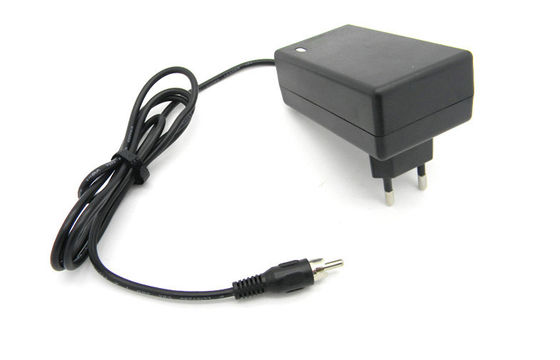

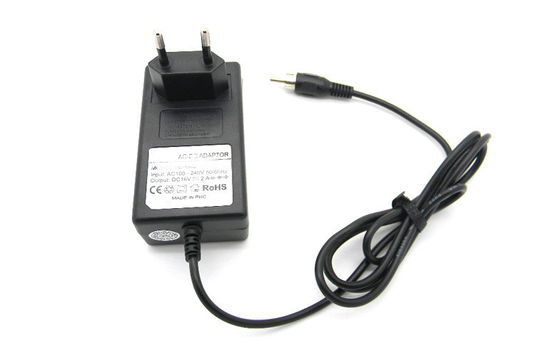

Short Circuit Wall Mount Power Adapter 16V 2A FCC Part 15 Class B For Cannon Printer

Short Circuit Wall Mount Power Adapter 16V 2A FCC Part 15 Class B For Cannon Printer

  • Short Circuit Wall Mount Power Adapter 16V 2A FCC Part 15 Class B For Cannon Printer
  • Short Circuit Wall Mount Power Adapter 16V 2A FCC Part 15 Class B For Cannon Printer
  • Short Circuit Wall Mount Power Adapter 16V 2A FCC Part 15 Class B For Cannon Printer
  • Short Circuit Wall Mount Power Adapter 16V 2A FCC Part 15 Class B For Cannon Printer
  • Short Circuit Wall Mount Power Adapter 16V 2A FCC Part 15 Class B For Cannon Printer
Short Circuit Wall Mount Power Adapter 16V 2A FCC Part 15 Class B For Cannon Printer
পণ্যের বিবরণ:
Place of Origin: Shenzhen,China
পরিচিতিমুলক নাম: RAYTOP
সাক্ষ্যদান: CE, RoHS, FCC
Model Number: RT-WMA-1600200
প্রদান:
Minimum Order Quantity: 1 PCS
মূল্য: US$1.9-2.3 per unit
Packaging Details: White box, Color Box or Blister, 200 PCS/Carton
Delivery Time: 15-20 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 200,000 Pcs monthly.
যোগাযোগ
বিস্তারিত পণ্যের বর্ণনা
style: wall mount power supply used for: adapter for security access control
Output: 16V 2A Input: AC100-240V
function 1: charger for security camera function 2: charger for security appliance
function 3: charger for security alarm system
লক্ষণীয় করা:

ac to dc power converter

,

wall plug adapter



Short Circuit Wall Mount Power Adapter 16V 2A FCC Part 15 Class B For Cannon Printer





Quick Detail:



Switching mode power adapter, DC16V 2000mA, wall mount in conformity with CE, RoHS, FCC certification. We can design exclusive model for your market only.





Specs:



Input: AC100-240V, 500A max.

Frequency: 50/60Hz

Output: DC16V, 2000mA

DC Cable: 20AWG, Copper, length: 1.2M

Plug: EU, UK, US, SAA, CCC





Features:



-High efficiency:>82%;

-Protection: Short circuit protection, over voltage protection, over current protection.

-MTBF: 50,000 hours.





Approval: CE, RoHS, FCC

Warranty: 2 years





Description:



This is an universal AC adapter come with tuning fork connector, for special usage of  Canon printer. It has high efficiency as well as steady performance.





Note:



indoor use only.





Applications:



used for cordless phone, sphygmomanometer,repeater etc.





Specifications:



Input

Rated Input Voltage

AC100~240V

Input Voltage Range

AC 90~264V

Rated Frequency

50/60 Hz

Input Frequency Range

47~63 Hz

Input AC Current

500mA

Inrush Current

30A

Output

Rated Output Voltage

DC16V

Rated Output Current

2000mA

Rated Power

32W

Ripple and Noise

150mV p-p

Standby Power Consumption

0.5W

Turn-on

5s

Hold-up

20s

Over Voltage Protection

Yes

Over Current Protection

Yes

Short Circuit Protection

Yes, automatically recover after short circuit removed.

Reliability

Hi-pot

3000Vac

Insulation Resistance

Input to output at 500Vdc

Leakage Current

5mA

EMI Standards

FCC Part 15B Class B

RoHS Compliant

Yes

MTBF

50,000 hours

Burn-in

40+/-5 ℃, full load, 12 hours

Drop Test

6 direction, each one time from height 1.0M

Environmental

Operating Temperature

0~40℃

Operating Humidity

10~80%

Storage Temperature

-20~65℃

Storage Humidity

0~90%

Safety Approvals

CE, RoHS, FCC, UL, SAA

Warranty

2 Years





Competitive Advantage:



-Open private model w/o extra cost for you;

-0.3% free backup of order quantity;

-Direct factory price without middle man.

-High performance-to-price ratio;

-Perfect after-sale service
