Silent I7 Mini PC with Haswell Intel Core i7-4500U 1.8Ghz 4 Desktop Computer

Silent I7 Mini PC with Haswell Intel Core i7-4500U 1.8Ghz 4 Desktop Computer

  • Silent I7 Mini PC with Haswell Intel Core i7-4500U 1.8Ghz 4 Desktop Computer
  • Silent I7 Mini PC with Haswell Intel Core i7-4500U 1.8Ghz 4 Desktop Computer
Silent I7 Mini PC with Haswell Intel Core i7-4500U 1.8Ghz 4 Desktop Computer
পণ্যের বিবরণ:
Place of Origin: CHINA
পরিচিতিমুলক নাম: INCTEL
সাক্ষ্যদান: CE/ FCC/ ROHS
Model Number: IN-I7B
প্রদান:
Minimum Order Quantity: 1pc
মূল্য: Negotiation
Packaging Details: color box
Delivery Time: within 5 business days
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Supply Ability: 10,000 pcs/ month
যোগাযোগ
বিস্তারিত পণ্যের বর্ণনা
Is_Customized: Yes Graphics Card Type: Integrated Card
Processor Main Frequency: 1.8Ghz Processor Model: i7-4500U 4650U
Operating System: Windows (OEM) or Linux Consumption: 15W-28W
লক্ষণীয় করা:

core i7 computer

,

inter core i7



Silent I7 Mini PC with Haswell Intel Core i7-4500U 1.8Ghz 4 Desktop Computer





Quick Details:



Mini PC i7 4500U 1.8Ghz from INCTEL. They have created an ultra compact PC with a stylish design based around an anthracite aluminum frame and smooth surface chassis. Ideal for a broad range of computing applications at home or in the office, the IN-I7B expounds sheer simplicity and convenience. With a broad choice of processors covering the entire performance spectrum, the IN-I7B sets a new standard for desktop miniaturization that makes it perfect as a discreet HTPC/multimedia hub, an ultra-low power PC for the family, an office PC or as a digital signage unit.

 The IN-I7B is sold as a DIY PC kit, shipping with a Mini PCIe Wi-Fi module slot (wifi optional), plus a power adapter and cable conforming to local standards. Only requiring an operating system, system memory and mSATA SSD, the IN-I7B gives users the flexibility to independently choose integrated storage and system memory size, without the trouble of sourcing components that are not widely available on the retail market.



System:



4G RAM, 64G SSD

(SSD for System, HDD for Storage)



If customer buy the configuration with RAM, SSD, HDD, We can install as belows,

XP/windows 7/Ubuntu Linux optional(if not leave message, we will ship at Random.)

Charged WIN.8 add extra $5, Server 2003 add extra $5

Above OS is OEM cracked Version, if need orginal, needs to purchase separately

Original Windows, please buy it locally!

For bulk orders/Bid Goverment orders, we can supply original embeded windows. (MOQ:10 Sets,inquiry our pre-sales)Silent I7 Mini PC with Haswell Intel Core i7-4500U 1.8Ghz 4 Desktop Computer 0


Specification:

Model IN-I7B
CPU Intel Core i7 4500U 4650U 4600U 1.8Ghz Dual Core Four Threads,we will ship randomly per the stock.
GPU Haswell/The fourth-generation i7 L3 4MB Cache Intel HD 4400-5000 Graphics
RAM Support  Dual Channel NB Memory SO-DIMM DDR3L (Maximum to 16G RAM, 2*8G)
Storage Support 1*Mini PCIE Msata SSD+1* 2.5" HDD/SSD (SSD Max.512G, HDD Max. 1.5TB)
Wi-Fi Dual Band Wireless-(150Mbps or 300Mbps optional)
Package

Mini PC+Power Supply+Power Cord (USA, European, UK Types for optional)+PC Stand



The fourth-generation i7

Haswell Architecture,Dual core four threads

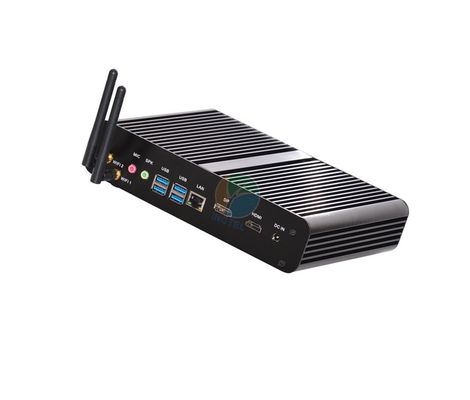

Mini PC Rear I/O:

DC 12V
HDMI
DP
Gigabit LAN
USB 2.0*2
USB 3.0*4
MIC Input
SPK Output
 Fanless



Upgrade Service:



1. WiFi Optional, if need wifi,(150Mbps) double antenna builtin wireless add extra $8,

(300Mbps) add $10. Choose one from 150M and 300M.

2. 1* COM Port: $5

3. IR Infrared module+ Remote Control (not with battery) add $14

4. USB Bluray DVD add $48, Normal DVD add $28

5. 2.4G Air mini Keyboard and Mouse add $18 (choose one type)

6. More configuration about lower or higher RAM, HDD, SSD Options, please refer to our big directory or contact our pre-sales for guide.

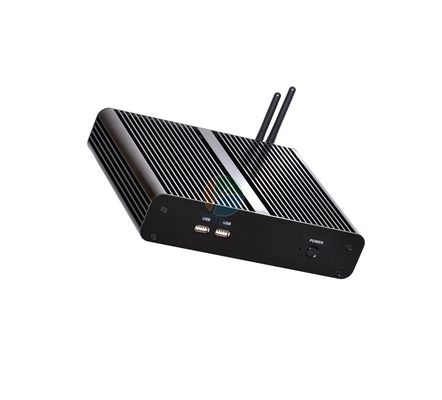

Ref. Photo as belows,

Silent I7 Mini PC with Haswell Intel Core i7-4500U 1.8Ghz 4 Desktop Computer 1

Upgrade link for the upgrade service: http://www.aliexpress.com/store/product/Mini-pc-upgrade/800900_868197980.html

(Upgrade rules, such as upgrade 150M wifi, buy 8pcs for $8, 300M wifi,

buy 10pcs for $10, Upgrade value, 1pc=$1)





Detailed Description:


Super Premium Ice barbed version fanless cooling computer outrageously starter, four-generation Haswell architecture i7 4500U processor, 4MB cache Turbo three highest 3.0Ghz, HD4400 graphics core 4K very clear



Support 4K HD output, support for DP digital high-definition interface, performance evaluation of Master Lu about 100,000 full version Sata3 only for the king was born, and only for tolerance from, do fanless mini computer in luxury



The world's first i7-4500U fanless mini PC Sync starting

Haswell i7-4500U ultimate super-cooling version has a surprise ice thorn listed

[Features]: zero decibel noise fanless aluminum core graphics IntelHD4400 smooth high-end 3D games to play online games perfect pass to kill everything perfect support 4K HD 3D Blu-ray support

The fourth-generation Core i7-4500U onboard processor supports Turbo Boost Technology Turbo Turbo to 3.0GHz up to 4MB cache, but only 15W TDP HD4400 integrated graphics core



CPU technical parameters i7 4500u

CPU frequency: 1.8GHz Turbo 3.0 Ghz

CPU FSB: 100MHz

CPU multiplier: 18 times

Microarchitecture: Haswell

Core Code: Haswell

Cores: Dual-Core

Threads: four threads

Manufacturing Process: 22 nm

A cache: 2 × 32KB

Two cache: 2 × 256KB

Three cache: 3MB

Bus Type: DMI

Bus frequency: 5.0GT / s

Thermal Design Power: 15W

Function parameters: Hyper-Threading technology, virtualization technology, 64 technology

Multimedia instruction sets: MMX, SSE, SSE2, SSE3, SSE4.1, SSE4.2, AVX

Display Core Model: Intel HD Graphics 4400

The basic frequency: 200MHz

Max Dynamic Frequency: 1100MHz [1]



1. Gigabit LAN support diskless boot HDMI 4K digital high-definition interface output DP interface supports both HD 3D Blu-ray

2. 12V-19V wide voltage external DC power supply, environmental protection, routine using only 15W to 28W power

3. Six USB which four USB3.0 2 USB2.0 ports full-1000M 300M WIFI wireless network card optional

4. Intel Haswell Express Chipset

5. Supports energized electric power function supports Wake on LAN

6. All solid, shock, drop, long-term stable and reliable operation, 32G SSD solid state disk speed of 300M / S support SSD RAID0 maximum speed of more than 700M per second



Parameters as follows:

CPU interface BGA package, the board posted CPU

CPU board i7-4500U Core Duo 18GHz CPU Turbo 3.0GHZ CPU bus (FSB) 100MHz

Chipset Intel haswell single chipset

Three cache (L3 Cache) 4MB,, CPU integrated

BIOS AMI BIOS, ACPI supported, support energized electrical power function supports Wake on LAN

System Memory 2 SO-DDR3 SDRAM memory slot up to 16GB DDR SDRAM

Built-in graphics core built-in Intel HD Graphics4400 Show

Support DP HD output interface supports HDMI output and can vary significantly synchronous output

NIC onboard RTL 8111DL 10/100/1000 BaseT LAN optional super-300M dual antenna WIFI signal

Sound using ALC662 chip, providing 6-channel audio

1. MSATA3.0 interface, support 6Gb / s  2. supports two SATA3 6Gb / s

MINI PCIE two MINI PCIE interface, full-height half-height support MSATA SSD support MINI PCIE wireless card

WIFI 300M WIFI built-in module, an external antenna to enhance signal

USB 6 x USB which four USB3.0 2 x USB2.0

Rear panel HDMI DP 1 * RJ-45 4 * USB ports 1 * DC (in)

12V AUDIO-OUT AUDIO-MIC



Power Support DC IN 12V-19V wide voltage power supply



Sizes 185mmx 220mmx40 mm



Weight: 2000 grams to 2300 grams or so



Temperature:

Operating Temperature:0 ° C ~ 70 ° C (32 ° F ~ 140 ° F)

Storage Temperature:-20 ° C ~ 80 ° C (-68 ° F ~ 176 ° F)

Relative Humidity:10% ~ 90% (non-condensing)



Experience scores under WIN7 system, CPU speed of the computer experience points to reach 7.1 points, and even more amazing is that 3D gaming graphics score of 6.6 points

Master Lu performance test results, showing to get the gold medal, this 32G SSD dual channel memory test results. Fanless operation, power 25W mini-computers, has miraculous properties.

Measured reach 1.0Gbps Gigabit Ethernet LAN speed networking to ensure high-speed stability, and the perfect support for diskless applications

In the boot speed WIN7 start 77 program reached within 20 seconds, beating the national 99 percent of computers, was awarded a five-star 360 God Machine.



I7 fanless PC market announcements: The world's top global unique fanless computer I7 4500u successful production. Only king born only for tolerance and do fanless mini PC comes standard with four generations HASWELL luxury i7 processor architecture similar products only Gigabyte brand INTEL brand mass production market, Our released fanless I7 for only a global starter. Barebones price of similar products in the mareked accounted for $612 while the same processor, fanless design, barebones $386 for sale from us.



New Listing Announcement: I7 4500U listing Meanwhile, unique fanless computer desktop architecture has been successfully completed mass production, a lot of outlets. Global exclusive design, the exclusive production based H87 top chipset supports processor G1820 I3 4130 I5 4670T I7 4770T can all be supported. The performance fanless computer again leap. Specific pricing and flexible sales made later.



This pc is black brushed appearance.



New listing announcement: I7 4500U and J1900 synchronous production listed on the occasion, the world's smallest quad-core mini fanless PC has completed the first volume production, using INTEL J1900 quad-core processor, only 7.7W power consumption, performance of the too, palm-sized, 14X10X3CM size, weight 350g. Once again challenge the desktop size and performance ratio limit. Total price of only $135 or so as barebones. Extremely competitive. Motherboard production is completed, waiting for the cabinet in place will be on sale, the highly anticipated, so stay tuned!



Thousands spot, domineering sold a small amount of I7 4650U lot I7 4500U



Master Lu computer performance evaluation beat 90% of the country, to get the gold medal, performance Needless to say, however, under such a powerful performance is ultra-small size, low power consumption (processor TDP = 15W) aluminum fanless noise 0 db. Achievement fanless PC king. There are always sophisticated mini-computer trend, while others can only follow the crowd!





Application:



1. a.Work as Desktop Computer, support all Windows and Linux...

    b. Work as thin client Mode, support all windows & Linux...



2. a. Fit for Touch Screen, Hotel, Internet Cafe, School, POS...

    b. Applied in multi media, embeded system, industry, home living room, firewall security...


3. a. For Interactive Whiteboard, 24/365 days work; HDMP 1080P...
    b. HQ for big govermant bid, project orders...


Power Supply:


About Power Cord:

We will ship the type of power cord, based on your area.



Silent I7 Mini PC with Haswell Intel Core i7-4500U 1.8Ghz 4 Desktop Computer 2


Gallery

Silent I7 Mini PC with Haswell Intel Core i7-4500U 1.8Ghz 4 Desktop Computer 3Silent I7 Mini PC with Haswell Intel Core i7-4500U 1.8Ghz 4 Desktop Computer 4


Shipping Term:



Nommally we ship via DHL, UPS, FEDEX, and EMS, HK Post, there are some explanation,


Flexible shipping cases as belows,



Case 1: Your shipping area is remote location for DHL. You could find out if your area is remote area or not on DHL the website:  raslist.dhl.com/jsp/first.jsp



Case 2: DHL is not allow to use in your area. Like Brazil, AR, Russian ,Kazakhstan. (So we ship via EMS or HK Post)



Case 3: If UPS or DHL are both appliable for your area , we will send it at randomly.
Good news for Russian customers, though DHL, UPS, Fedex etc express are unavailable to deliver to Russia in our area, we choose eEMS(EMS upraded version) to ship parcel by default, safe, fast, with better ability of customs clearance(Russia Customs is strictest in the world). Delivery within about 5-10 working days by e-EMS.



Case 4, Via HK post (mostly Spain prefer by HK post)



Except all of 4 cases, If your address is remote area for us, you should add extra shipping fees for DHL/ UPS/EMS/Fedex etc(welcome to consult our Pre-sales).



Above All, if our dear customer have its own ideas on the shipping method and declared value request, please leave message on the order, or consult our pre-sales.
