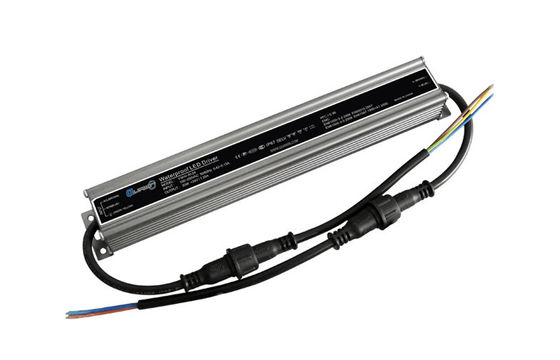

Waterproof Ip67 Constant Voltage LED Driver Circuit 40w DC 15V
Quick Detail:
1. High efficiency 89%
2. Low cost, high reliability
3. Full range 90~264VAC
4. Protections:
. Short-circuit
. Over-load
. Over-voltage
. Over-temperature
5. Working temperature : -40℃ ~ + 70℃
6. IP67 design for indoor and outdoor applications
7. 2~3 times burn-in tests (+50℃/-40℃ at full load with over 14 hours)
Application
Led strips, led landscape lights, led down lights, led electronics display screen……etc
Specification Sheet |
||
Model |
QW150-026-AW (Note 1) |
|
Output |
Rated Voltage |
15VDC |
Ouput Current Range |
0 ~ 2.6A |
|
Rated Power |
40W |
|
Ripple and Noise (Max)(Note 2) |
150mVp-p |
|
Voltage Tolerance |
±3.0% |
|
Line Regulation |
±1% |
|
Load Regulation |
±1.0% |
|
Set-up, Rise Time |
1500ms 80ms/230VAC, 2000ms 80ms/110VAC |
|
Hold-up Time |
50ms/230VAC at full load, 25ms/110VAC at full load |
|
Input |
Voltage Range |
90~264VAC |
Frequency Range Efficiency(Note 3) |
47~63Hz |
|
86.0% |
||
AC Current |
0.50A ~ 0.17A |
|
Inrush Current |
Cold Start at 45A/230VAC, Input at Ta: 25℃ cold start. |
|
Leakage Current |
﹤0.5mA at 230VAC, 60Hz Input |
|
Protection |
Current protection |
±1% (current limiting type) Constant current limit, recovers after faulty problem |
Over-Voltage |
110% ~ 130% (Shut down O/P voltage, repower on to recover) |
|
Over-load |
130% ~ 150% (Shut down O/P voltage, repower on to recover) |
|
Short Circuit |
Hiccup mode, recovers automatically after faulty problem is removed |
|
Lightning Protection |
Gas discharge tube automatically open to discharge, repower on to recover |
|
Over-temperature |
85℃±10℃ (Shut down O/P voltage, re-power on to recover) |
|
Environment |
Working Environment(Note 4) |
-40℃ ~ +70℃ |
Working Humidity |
20~90% RH non-condensing |
|
Storage Environment & |
-45℃~+80℃ |
|
TEMP. Coefficient |
±0.05%℃ (0~50℃) |
|
Vibration |
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes |
|
Safety & EMC |
Safety Standards |
EN-61347-1, EN61347-2-13, IP67, ROHS Tests, Design refer to UL8750 |
Withstand Voltage |
I/P-O/P: 3KVAC, IP-FG:1.5KVAC, OP-FG: 500VAC |
|
Isolation Resistance |
I/P-O/P IP-FG OP-FG: 100M Ohms/500VDC / 25℃ / 70% RH |
|
EMC Emission |
Compliance to EN55015: 2007, EN61547:1995+A1:2000; EN61000-3-2: 2006; |
|
EMC Immunity |
Compliance to EN55015 EN61547 EN61000-4-2,3,4,5,6,8,11 |
|
Others |
Life Span(Note 5) |
≥50000Hrs (25~30℃) |
No Load power consumption |
≤1.0W |
|
MTBF(Note 6) |
250K hrs min, MIL-HDBK-217F (25℃ ) |
|
Dimension(Note 7) |
248*36*29 mm (L*W*H) |
|
Packing (Note 8) |
40pcs/carton |
|
Weight |
0.4Kg/pcs / 40pcs/CTN |
|
Notes |
All parameter are measured at normal temperature (+25 ~ +28℃) |
|
1. The rated voltage can be customized, such as 18V/27V… can be customized |
||
2. Ripple & Noise are measured at 20KHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1 uf & |
||
3. The efficiency measured at Max output voltage, and 230VAC with full load, if with 110VAC the efficiency |
||
4. This series can work -45 ~ -50℃ (at full load), if need related parameter contact us. |
||
5. This measured at 120VAC, 80% ~85% load with environmental temperature about +25℃~+30℃, the outer housing temperature with +55℃ or so. |
||
6. This measured at 120VAC, 80% ~85% load with environmental temperature about +25℃~+30℃, the outer housing temperature with +55℃ or so. |
||
7. More details see the following mechanical draft. |
||
8. The 18pcs packing method is not suitable for led drivers with waterproof connector |
Mechanical Specification
Block Diagram
Derating Curve Static Characteristics
Efficiency & Load of (24V) (110VAC / 230VAC)
