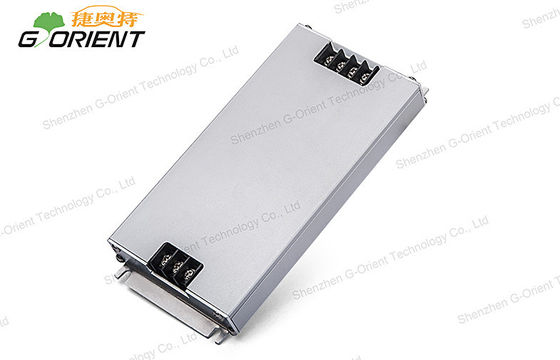

Car LED Display Single Output Switching Power Supply DC4.5V 40A Elegant Design

Car LED Display Single Output Switching Power Supply DC4.5V 40A Elegant Design

  • Car LED Display Single Output Switching Power Supply DC4.5V 40A Elegant Design
Car LED Display Single Output Switching Power Supply DC4.5V 40A Elegant Design
পণ্যের বিবরণ:
Place of Origin: China
পরিচিতিমুলক নাম: G-ORIENT
সাক্ষ্যদান: ISO9001 / CE / ROHS / FCC
Model Number: NHD200-4.5-E
প্রদান:
Minimum Order Quantity: 10pcs
মূল্য: negotiable
Packaging Details: 20pcs/12Kgs / CARTONS
Delivery Time: 10 working days after received your payment
Payment Terms: T/T, Paypal, L/C, Western Union
Supply Ability: 50,000pcs per month
যোগাযোগ
বিস্তারিত পণ্যের বর্ণনা
Product Name: Single output switching power supply Size: 168*80*18mm
Output power: 180W High efficiency: 94%
Input: 9-36V DC Output: 4.5V DC / 40A
Application: Indoor Ripple & Noise: ≤100mVp-p
Standard: CE / ROHS / FCC
লক্ষণীয় করা:

led light power supply

,

adjustable power supply





Car LED Display Single Output Switching Power Supply DC4.5V 40A Elegant Design





Features:

* To prevent car screen flower screen, the splash screen and two horizontal line design

* Through the EMC certification

* 2 years warranty

* Input reverse connect protection

* Aluminum metal shell,natural cooling

* High efficiency 94% & small size

* Low output ripple and noise





Applications:

1. Automobile

2. Ship

3. Electric cars

4. New energy products

5. LED electronic signs

6. Car audio board

7. Other energy-saving appliances





Specifications:

Switching power supply

 NHD-200-4.5E

 OUTPUT

DC Voltage

 4.5V

Current Range

 0~20A x 2

Rated Current

 40A (2 independent output)

Rated Power

 180W

Ripple & Noise(max.)

 <200mVp-p

Voltage set point accuracy

 +/- 3.0%Vo max

Over-current protection

 >120%io,hiccup

Line Regulation

 0.2%Vo max

Load Regulation

 0.2%Vo max

Short-circuit protection

 Hiccup

Hold up time

 >8mS

Overshoot and undershoot

 < +/- 5.0%

 INPUT

Voltage Range

 DC9-36V

Frequency Range

 BW=20MHz

Efficiency(Typ.)

 94%

DC Current

 <25A

Inrush Current(Typ.)

 100A at DC Cold start

Leakage Current

 Input-Output< 0.2mA ; Input-PG:<0.3mA

 Environment

MIBF

 >2 million hrs

Temp.Coefficient

 < 0.02%/℃

Storage Temperature range

 -55 ~ +115℃

Operaing board Temperature range

 -25 ~ +65℃

 Safety

Safety standards

 CE

Withstand Voltage

 DC40V

 Others

Dimension

 152*100*18mm (L*W*H)

Packing

 0.6kg; 20pcs/12Kgs





Competitive Advantage:

* Low output ripple and noise

* CE / ROHS / FCC approval

* Output over-current,short-circuit,over-load,over-voltage protection

* Ultra-thin 18mm

* High efficiency up to 94%

* The two level output over voltage protection





Company Advantage:

* Short lead time

* Professional R&D team

* High quality products

* Standardized production process
