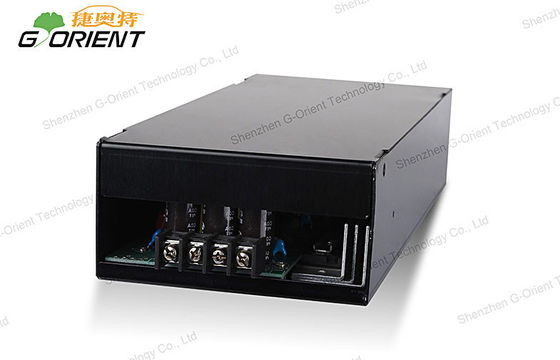

720W Industrial Silent Power Supply 12V / 60A Universal Industrial AC / DC Converter

720W Industrial Silent Power Supply 12V / 60A Universal Industrial AC / DC Converter

  • 720W Industrial Silent Power Supply 12V / 60A Universal Industrial AC / DC Converter
720W Industrial Silent Power Supply 12V / 60A Universal Industrial AC / DC Converter
পণ্যের বিবরণ:
Place of Origin: China
পরিচিতিমুলক নাম: G-ORIENT
সাক্ষ্যদান: ISO9001 / CE / ROHS / FCC
Model Number: NHI720-12
প্রদান:
Minimum Order Quantity: 10pcs
মূল্য: negotiable
Packaging Details: 10pcs/16Kgs / CARTONS
Delivery Time: 10 working days after received your payment
Payment Terms: T/T, Paypal, L/C, Western Union
Supply Ability: 50,000pcs per month
যোগাযোগ
বিস্তারিত পণ্যের বর্ণনা
High efficiency: 81% Application: Indoor
Output: 12V DC / 60A Ripple & Noise: ≤250mVp-p
Input: 200-240V AC Output power: 720W
লক্ষণীয় করা:

5v 12v power supply

,

constant voltage power supply



720W Industrial Silent Power Supply 12V / 60A Universal Industrial AC / DC Converter



Competitive Advantage:
* Ultra-low start up temp.(- 20℃)
* High efficiency up to 85%
* Protections:Short circuit / Overload / Over voltage / Over temperature
* Small size,ultra-light and easy to install
* CE / ROHS / FCC approval
* 2-3 years warranty


Applications:
* Products can be used to street lamps, lawn lamps, sunlight lamps, LED lighting
* Adornment: LED lamp, LED luminaire , LED strips, LED screens, advertisement screens
* Industrial electrical products, machinery and electrical equipment, security system, air purifier





Specifications:

Switching power supply

 NHI720-12

 OUTPUT

DC Voltage

 12V

Current Range

 0~60A

Rated Current

 60A

Rated Power

 720W

Ripple & Noise(max.)

 <250mVp-p

Voltage ADJ.Range

 10~13.5V

Voltage Tolerance

 +/- 1.0%

Line Regulation

 +/- 0.5%

Load Regulation

 +/- 0.5%

Setup,Rise Time

 1000ms,50ms/230VAC

Hold up time

 20ms/230VAC

 INPUT

Voltage Range

 200-240VAC

Frequency Range

 47-63Hz

Efficiency(Typ.)

 83-88%

AC Current

 7.5A/230VAC

Inrush Current(max.)

 60A/230VAC

Leakage Current

 < 2.0mA /240VAC

 Protection

Over Load

 105 ~ 125% rated output power

 Protection type: Constant current limiting,recovers automatically after fault condition is removed

Over Voltage

 13.8~ 16.2V

 Protection type: Shut down O/P voltage,re-power on to recover

Over Temperature

 85℃ +/- 5℃

 Protection type: Shut down O/P voltage,recovers automatically after temperature goes down





 Environment

Working Temp.

 -40 ~ +60℃ (Refer to output load derating curve)

Working Humidity

 20 ~ 90% RH, non-condensing

Storage Temp., Humidity

 -40 ~ +85℃, 10 ~ 95% RH

Temp.Coefficient

 +/-0.05%/℃ (0 ~ 50℃)

Vibration

 10 ~ 500Hz, 2G 10min./1 cycle,60min. Each along X, Y, Z axes

 Safety

Safety standards

 UL60950-1 approved

Withstand Voltage

 I/P-O/P:3KVAC  I/P-FG:1.5KVAC   O/P-FG:0.5KVAC

Isolation Resistance

 I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC / 25℃ / 70% RH

 Others

MTBF

 >197K hrs min. MIL-HDBK-217F(25℃)

Dimension

 260*140*65mm (L*W*H)

Packing

 2.1kg; 10pcs/2Kgs

 Note

1. All parameters NOT specially mentioned are measured at 230VAC input,rated load and 25℃ of ambient temperature.

2. Ripple & noise are measured at 20Mhz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1uf & 47 uf parallel capacitor.

3. Tolerance: includes set up tolerance,line regulation and load regulation.








Features:
Protections:Short circuit / Overload / Over voltage / Over temperature
* Built-in constant current limiting circuit
* Low cost,high reliability
* 2 years warranty





Company Advantage:
* High quality products
* Short lead time
* Professional R&D team
* Standardized production process
