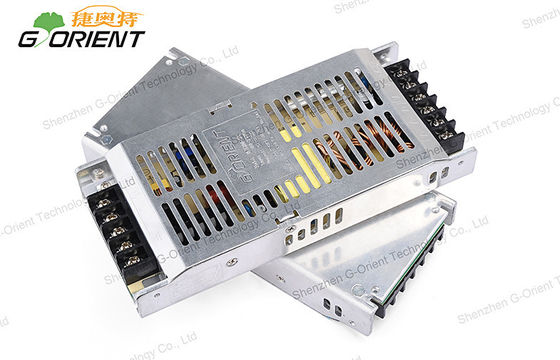

200W Single Output 5v AC DC Converter for LED Display Screen

পণ্যের বিবরণ:

Place of Origin:	China
পরিচিতিমুলক নাম:	G-ORIENT
সাক্ষ্যদান:	ISO9001 / CE / ROHS / FCC
Model Number:	NHI200-5-A

প্রদান:

Minimum Order Quantity:	10pcs
মূল্য:	negotiable
Packaging Details:	20pcs/16Kgs / CARTONS
Delivery Time:	10 working days after received your payment
Payment Terms:	T/T, Paypal, L/C, Western Union
Supply Ability:	50,000pcs per month

যোগাযোগ

বিস্তারিত পণ্যের বর্ণনা

Product Name:	Ac dc converter	Size:	1908530mm
Standard:	CE / ROHS / FCC	IP Grade:	IP20
Output Type:	Single	Output power:	200W
Input:	200-240V AC	Output:	5V DC / 40A
লক্ষণীয় করা:	ac to dc converter , 5v ac dc converter

200W Single Output 5v ac dc converter for LED Display Screen

Features:

* High efficiency up to 85%

* Ultra thin 30mm

* Protections:Short circuit / Overload / Over voltage / Over temperature

* Cooling by free air convection

* Withstand 300vac surge input for 5 second

* Built-in constant current limiting circuit

* 100% full load burn-in test

* Fixed switching frequency at 90KHz

* Low cost,high reliability

* 2 years warranty

Applications:

* urban landscape lighting

* LED Lighting

* Military project

* Communication security equipment

* indoor and outdoor advertising screens

* New energy and other Various industries

Company Advantage:

* High quality products

* Short lead time

* Professional R&D team

* Standardized production process

Specifications:

Switching power supply		NHI200-5-A
OUTPUT	DC Voltage	5V
	Current Range	0~40A
	Rated Current	40A
	Rated Power	200W
	Ripple & Noise(max.)	<250mVp-p
	Voltage ADJ.Range	4.5~5.6V
	Voltage Tolerance	+/- 2.0%
	Line Regulation	+/- 0.5%
	Load Regulation	+/- 1.0%
	Setup,Rise Time	1000ms,50ms/230VAC
	Hold up time	20ms/230VAC ;
INPUT	Voltage Range	200-240VAC
	Frequency Range	47-63Hz
	Efficiency(Typ.)	83-88%
	AC Current	2.5A/230VAC
	Inrush Current(max.)	55A/230VAC
	Leakage Current	< 3.5mA /240VAC
Protection	Over Load	105 ~ 150% rated output power
	Over Load	Protection type: Constant current limiting,recovers automatically after fault condition is removed
	Over Voltage	5.75 ~ 7.0V
	Over Voltage	Protection type: Shut down O/P voltage,re-power on to recover
	Over Temperature	100℃ +/- 5℃
	Over Temperature	Protection type: Shut down O/P voltage,recovers automatically after temperature goes down
Environment	Working Temp.	-40 ~ +60℃ (Refer to output load derating curve)
	Working Humidity	20 ~ 90% RH, non-condensing
	Storage Temp., Humidity	-40 ~ +85℃, 10 ~ 95% RH
	Temp.Coefficient	+/-0.03%/℃ (0 ~ 50℃)
	Vibration	10 ~ 500Hz, 5G 10min./1 cycle,60min. Each along X, Y, Z axes
Safety	Safety standards	UL60950-1 approved
	Withstand Voltage	I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
	Isolation Resistance	I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC / 25℃ / 70% RH
Others	MTBF	271.9K hrs min. MIL-HDBK-217F(25℃)
	Dimension	1908530mm (LWH)
	Packing	0.8kg; 20pcs/16Kgs
Note	1. All parameters NOT specially mentioned are measured at 230VAC input,rated load and 25℃ of ambient temperature.
	2. Ripple & noise are measured at 20Mhz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1uf & 47 uf parallel capacitor.
	3. Tolerance: includes set up tolerance,line regulation and load regulation.
	4. Please connect positive pole of input voltage with mark”L” of terminal block,connect negative pole of input voltage with mark”N” of terminal block,using DC voltage for input voltage
