Place of Origin: | CHINA |
পরিচিতিমুলক নাম: | WLINK |
সাক্ষ্যদান: | CE, ROHS |
Model Number: | WL-R200H3 |
Minimum Order Quantity: | For WLINK brand, MOQ 1 unit, For OEM MOQ 50 units |
---|---|
মূল্য: | negotiation |
Packaging Details: | One set to one box, 20 units boxes to one carton |
Delivery Time: | Stock for small quantity, 5-7 working days for bulk order |
Payment Terms: | TT, L/C, Paypal, Western Union or Cash in advance |
Supply Ability: | 5000 sets / Per month |
Products Name: | HSPA+ 21Mbps 3G Router | Network: | HSPA+ 3G |
---|---|---|---|
Wireless Standard: | 802.11n | Application: | M2M field |
Type: | Industrial grade | Interface: | 2 * LAN (1 * LAN, 1 * WAN optional) |
Frequency band: | 850/900/1900/2100MHz | ||
লক্ষণীয় করা: | 3G Mobile Wireless Router,Router 3G Industrial |

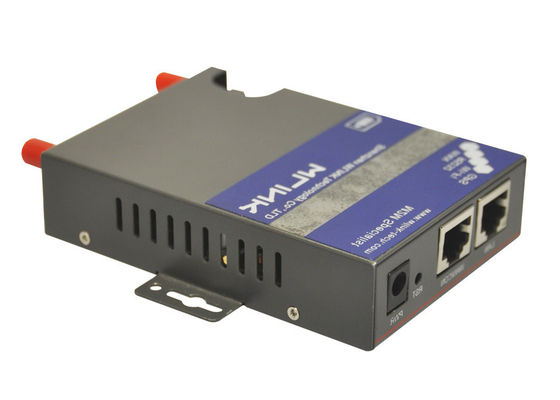

HSPA + 21Mbps Industrial 3G Router with 2xLAN , mobile broadband
Wlink R200H3 3G Router is an industrial grade, M2M 3G Router that provides 3G HSPA+ connectivity for high speed mobile broadband internet connectivity and is the ideal solution to provide high speed 3G connectivity for a wide range of M2M (Machine to Machine) applications such as CCTV, Digital Signage (Remote Media), Energy Monitoring (Solar and Wind) or any process controller or management system that communicates using IP.
The WLINK R200H3 3G router uses the Huawei Wireless embedded 3G HSPA+ modem which offers high speed 3G connectvity up to 100Mbps download speed and up to 50Mbps upload speed as well as being backwards compatible with widely available 3G services and provides HSPA+, UMTS and GPRS connectivity making this router one of the most flexible 3G routers available today.
The WL-R200H3 M2M 3G Routers includes keep alive functions like Ping Reboot and Cell ICMP check that enable the router to detect that it has been disconnected from the mobile network and to reboot itself thus re-instating the mobile network connection. These keep alive measures are essential when using a 3G router for M2M remote management and monitoring.
Basic Feature
Advance Optional Feature
Specification
Specification |
||||
OptionalSupport Mobile Network |
◎ FDD LTE 2600/2100/1800/900/800MHz |
Ethernet Standard |
◎ IEEE 802.3 |
|
Interface |
◎ 2×10/100Mb LAN interface |
LED instruction |
◎ SYSTEM |
|
Route Protocol |
◎ Static route ◎ RIPv2/OSPF dynamic route |
Power Supply |
◎ 7.5~32VDC |
|
Device |
◎ Local or remote web browser (IE v8 or above) |
WiFi (Optional) |
◎ Standard: IEEE 802.11b/g/n |
|
Firewall & Filter |
◎ IP packet/Domain/MAC filter |
VPN |
◎ IPSec |
|
Power |
◎ Idle: 80mA@+12VDC |
Other |
◎ Dimension: 103mm x 73.5mm x 25.5mm (not including antenna) |
|
Standard |
EN 300 328 v 1.7.1 (2006-10) EN 301 511 EN 301 908-13 |
EN 60950-1, EN 62311:2008 |
Approval |
CE |
Applications:
Application |
|
Energy |
Digital Oil Field, Coal Mine, Solar, Smart Grid, |
Utilities |
Smart City, Traffic, Street lighting, Public Safety, 4G Public hotspot, Environment monitoring, Video Surveillance |
Industrial |
Remote Telemetry, Tanking Monitoring, Automation, Remote PLC, Remote AMR, Remote Monitoring and control |
Retail |
ATM, POS(Point-of-Sale), Vending Machine, Lottery Machine, Branch network, Digital Signage, Video Surveillance, failover between WAN&4G/3G |
Transportation |
Bus WiFi, WiFi on Board, Vehicle video surveillance, Fleet tracking and management, Bus Advertising |
Competitive Advantage:
