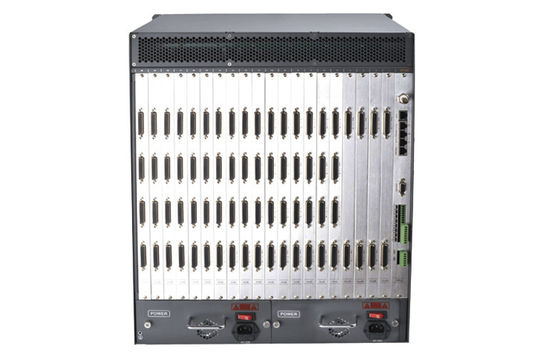

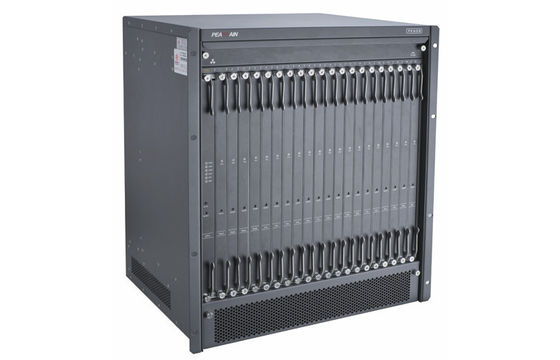

PE60S Full cross-point analog Video Matrix switcher , Pearmain modular matrix system , UL certified
Quick Detail:
● Microprocessor-Based, Full Cross-Point Video Matrix.
● Modularization Design Supports Up To 512 Cameras And 64 Monitors In Each Matrix Bay
● Control Up To 50,000 Cameras And 512 Monitors On Base Of System Extension.
● System Diagnostic Leds Displayed On Front Panel.
● Logical Camera Selection And Priority Level Operation & Configuration In Matrix Software
● Built-In Video Loss Detection
● Windows-Based System Management Software, Includes Multilingual Menus And On-Screen Help
● Factory Tested Prepackaged System Configuration And Quick-Guide Manual.
● Including ASCII Data, DVR, PTZ, Network, Etc. Protocol
● Powerful Macro Programming
● CE, FCC, ROHS,UL compliant
Description:
PE60S is Network Modular Matrix, one matrix bay can have up to 512ch video input & 64ch video output, can extend to 65535ch input, Dual CPU & Dual Power supply for Plug & play and seamless switching.
Redundant Dual CPU & Dual power supply unit for double guarantee.
Configuration software to set all parameter of matrix.
Specifications:
|
Communication
|
|
Communication
|
RS-422, RS-485, RS-232, TCP/IP
|
|
Baud rate
|
19200 bits/s, 9600 bits/s, 4800 bits/s, 2400 bits/s etc.
|
|
Interface
|
RS-422 RJ45 connector ( full duplex )
RS-232 RJ45 connector
RS-485 3-pin 3.81 connector(semi-duplex)
|
|
System configuration
|
|
System User
|
255
|
|
System capacity
|
Main matrix bay: 512ch inputs/ 64ch outputs
Maximum input: 608ch inputs / 8ch outputs
Maximum after extension: 50000ch outputs / 512ch outputs
Logic encoding value: 999999 inputs / 2048outputs
|
|
Alarm capacity
|
50000
|
|
On-screen display
|
Camera title: 32 english character
Full screen: 16 lines, 42 row english character
|
|
Character
|
Chinese/ English / Latin / Cyrillic
|
|
Power-off memory time
|
10 year
|
|
Video
|
|
Video input
|
1Vp-p/75Ω Composite signal
|
|
Video output
|
1Vp-p/75Ω Composite signal
|
|
Signal to noise ratio
|
>60dB ( unweighted )
>70dB ( weighted )
|
|
Channel bandwidth
|
5Hz～8MHz(1Vp-p with filter)
20MHz(1Vp-p,-3dB without filter)
65MHz(20mVp-p,-3dB without filter)
|
|
Insertion gain
|
<0.2dB
|
|
Differential gain
|
<1.0%
|
|
Differential phase
|
<1.1°
|
|
Frequency characteristics
|
<1.0dB(5.8MHz)
|
|
Adjacent Channel Crosstalk
|
<-55dB(PAL: 4.43MHz/NTSC: 3.58MHz)
|
|
Adjacent channel isolation
|
>50dB(PAL: 4.43MHz/NTSC: 3.58MHz)
|
|
Line Time Waveform Distortion
|
<1.0%
|
|
Typical switching time
|
20ms(Typical)
|
|
Electrical Characteristics
|
|
Power Supply
|
100～240VAC 50/60Hz Adaptive
|
|
Power consumption
|
160W
|
|
Mechanical Specifications
|
|
Weight
|
35KG(Full capacity)
|
|
Installation dimension
|
484mm(Width)×366.0mm(Depth)×532.6mm(12U) height
|
|
Rack
|
19’’ EIA standard chassis
|
|
Environmental specifications
|
|
Operating temperature
|
-10～+55℃
|
|
Operating Humidity
|
0～90%RH(No condensation)
|
| |
|
|
Applications:
For the surveillance system where there are all analog cameras, the application focus on real time surveillance.
The application including Transportation control center, casino, city surveillance, anti-terrorist, harbor,etc. large scale surveillance system.
