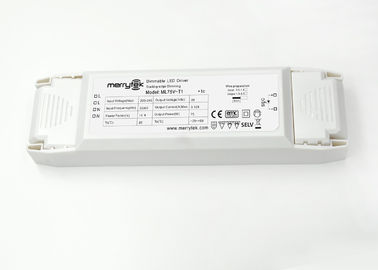

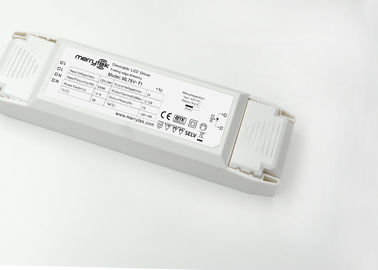

75 Watt Constant Voltage Dimmable LED Driver 24V iP20 CE 30000h Life Time

75 Watt Constant Voltage Dimmable LED Driver 24V iP20 CE 30000h Life Time

  • 75 Watt Constant Voltage Dimmable LED Driver 24V iP20 CE 30000h Life Time
  • 75 Watt Constant Voltage Dimmable LED Driver 24V iP20 CE 30000h Life Time
75 Watt Constant Voltage Dimmable LED Driver 24V iP20 CE 30000h Life Time
পণ্যের বিবরণ:
Place of Origin: China
পরিচিতিমুলক নাম: Merrytek
সাক্ষ্যদান: CE
Model Number: ML75V-T1
প্রদান:
Minimum Order Quantity: 100pcs
মূল্য: Negotiation
Packaging Details: Packed in bubble bag firstly, and then reinforced with carton for outer packing
Delivery Time: 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.
Supply Ability: 10,000pcs per month
যোগাযোগ
বিস্তারিত পণ্যের বর্ণনা
Product Name: 75W 24Vdc Traic Dimmable Led Driver Output load: 1*75W max
Output Current: 3.125A Max. Output Voltage: 24Vdc
Input Voltage: 220-240Vac Dimming Mode: Traic
Working Temperature: -25℃-50℃ Isolation Class: Class II, SELV
Approvals: CE Protection Class: IP20
লক্ষণীয় করা:

24v constant voltage led driver

,

12v constant voltage led driver

75W 24Vdc Constant Voltage  Traic Dimmable LED Driver



Description:

1, trailing-edge dimming, compatible with popular dimmer in Euro.

2. This Triac dimmable led driver mainly works for led strip.

3, Protection: Short circuit / Over voltage / Over temperature.

4, Constant voltage 24Vdc

5, Dimming range: 10%-100%

6. Compatible with dimmer: Scandinavia market- Schneider SBD615RC; Deutsch market- JUNG 225 T; DEBERKE 2874; BUSCH 6513 U-102; GIRA 0307 00



Specifications

Input

Input voltage

220-240Vac, 50/60Hz

Power factor (PF)

≥0.9(@ 240Vac input, full load and without dimmer)

Efficiency

≥82%(@ 240Vac input, full load and without dimmer)

No-load power

≤1.5W

Output

Output Voltage

24V DC

Output Current

3.125A max.

Voltage accuracy

±5%

Rated power

75W Max.

Dimming

Dimming mode

Trailing edge dimming

Dimming range

10%-100%

Environment

Working temperature

-25℃~50℃

Storage temperature

-40℃~80℃

Safety and EMC

Insulation class

Class II, SELV

Withstand voltage

Input-Output: 3.7kVac/5mA/1min

EMC

Compliance to EN55015, EN61000-3-2 Class C, EN61000-3-3, EN61547

Safety

Compliance to EN61347-1, EN61347-2-13

Protection

Short circuit

Protection mode: Auto recovery

Over temperature

Protection mode: Auto recovery

Others

Dimension

220x58x40mm

Enclosure

Plastic, white

IP rating

IP20

Connection

Input: 4-hole press-in type terminal(L, L, N, N)

Output: Screw terminal block (LED +, LED -)

Life time

30,000h

Certification

CE
