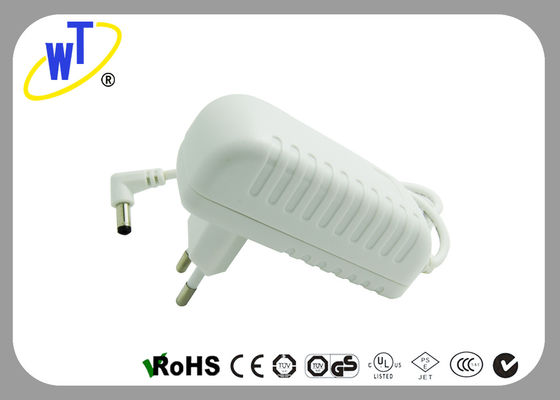

18W 2 Pins Wall Mount Power Adapter with Right Angle DC Jack

পণ্যের বিবরণ:

প্রদান:

Minimum Order Quantity:	500 pcs
মূল্য:	negotiation
Packaging Details:	PE bag+white box/PE bag without white box
Delivery Time:	20 Days
Payment Terms:	T/T(30% in advance, 70% the balance must be paid before the delivery)
Supply Ability:	8000 PCS/Day

যোগাযোগ

বিস্তারিত পণ্যের বর্ণনা

color:

white

jack:

right angle/straight

লক্ষণীয় করা:

portable power adapter

18W 2 Pins Wall Mount Power Adapter with Right Angle DC Jack

Quick Details:

Description:

1. Surface cosiness, small size and convenient carrying

2. Low cost, high reliability and all cases are covered by ultrasonic

3. Built-in OVP, OCP and SCP

4. Universal input voltage:

a. I/P voltage 100-240VAC; 50/60Hz

b. Turn on delay time≤3s

c. Inrush current≤30A/24V AC

5. O/P:

a. High accuracy and low noice

b. Hold up time ≥20mS

6. Operation model: CV

7. Environment:

a. Operation temperature: 0°C-40°C;5%-90%RH

b. Storage temperature: -20°C-85°C;5%-95%RH

8. Cooling: Natural cooling

9. Energy standard: CEC/ERP

10. Safety standard: IEC/EN60950

11. Insulation: hi-pot, 3,000V AC 60S 10mA

12. Leakage current: 0.25mA (maximum)

13. MTBF: MIL-HDBK-217F, full load, 25, more than 50,000 hours

14. RoHS compliant

Warranty:	12 months
Certification:	UL/CCC/SAA/ROHS
Usage:	Distributor,CCTV cameras,LCD monitors,Tablet PC and LED lights
Packaging:	a. PE bag+ white box b. PE bag without white box
Place of Origin:	China(Mainland)
Brand Name:	WT
Model Numeber:	WT1201500
MOQ:	500 pcs
Delivery Time:	20 Days
Payment Terms:	T/T(30% in advance, 70% the balance must be paid before the delivery)
Supply Ability:	8000 PCS/Day

Our Advantages:

Some Using Details:

The power supply should be installed in a location with good airflow
Do not install power supply in locations with high humidity, dust or strong direct sunlight.
Connect power supply to the supplied unit.
Power supply must be connected to a working electrical AC line with a voltage of 100-240V.
Power supply can only be installed indoors.

18W 2 Pins Wall Mount Power Adapter with Right Angle DC Jack 0
