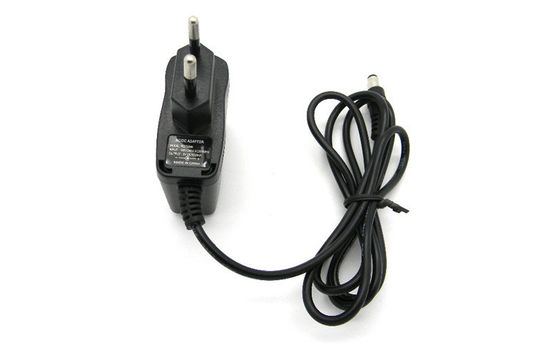

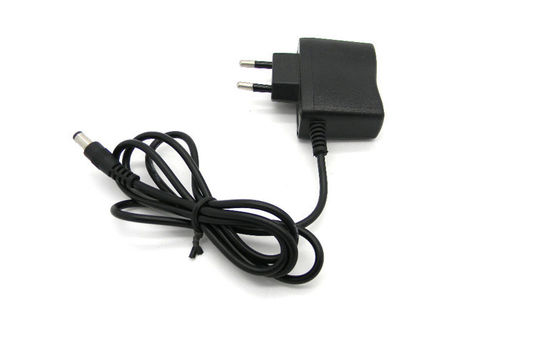

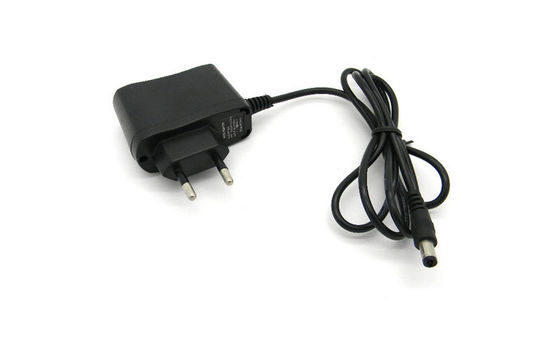

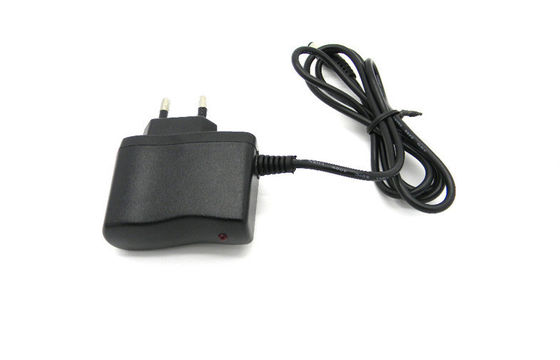

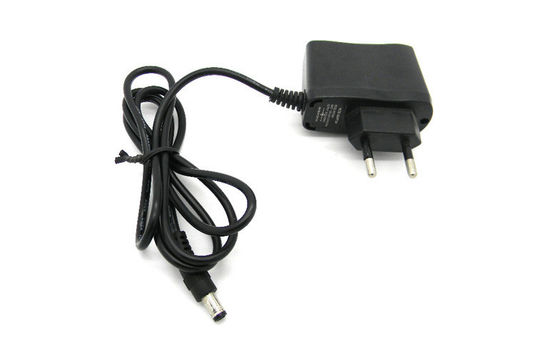

5V 1000mA Wall Mount Power Supplies 5.5x2.1mm EU Plug , 50Hz / 60Hz

পণ্যের বিবরণ:

Place of Origin:	Shenzhen,China
পরিচিতিমুলক নাম:	RAYTOP
সাক্ষ্যদান:	CE, RoHS, FCC
Model Number:	RT-WMA-0500100

প্রদান:

Minimum Order Quantity:	100 PCS
মূল্য:	Negotiable
Packaging Details:	PE Bag, Master Carton, Customer package available.
Delivery Time:	15-20 working days.
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	200,000 Pcs monthly.

যোগাযোগ

বিস্তারিত পণ্যের বর্ণনা

Product Name:	5V 1A Wall mount Power Adapter	Input:	AC10-240V, 50/60Hz, 0.3A
Output:	5V, 1A / 6V 1A, 12V 0.5A	AC Plug:	EU,US,UK,SAA,CCC
AC Cable:	2x0.5mm2, 1.2M	DC Plug:	AWG24, 1.2M
DC Connector:	5.5x2.1mm, 5.5x2.5mm	Color:	Black
Protection:	Short circuit protection, over voltage protection, over load protection
লক্ষণীয় করা:	Wall Mount Power Supply , ac to dc power converter

5V 1000mA Wall Mount Power Supplies 5.5x2.1mm EU Plug , 50Hz / 60Hz

Quick Detail:

High frequency switching mode power adapter, DC 5V 1000mA, wall mount style in conformity with CE, RoHS, FCC certification

Specs:

Input: AC100-240V, 0.2A max.

Frequency: 50/60Hz

Output: DC5V, 1000mA

DC Cable: 24AWG, Copper, length: 1.2M

Plug: EU, UK, US, SAA, CCC

Features:

-World wide voltage input;

-High efficiency:>85%;

-Protection: Short circuit protection, over voltage protection, over current protection.

-MTBF: 50,000 hours.

Approval: CE, RoHS, FCC

Warranty: 2 years

Description:

This is an AC power adapter come with single output tip 5.5x2.1x10mm. It has high efficiency as well as steady performance. The tip size and plug type can be changeable.

Note:

indoor use only.

Applications:

used for digital devices, LCD, LED, emergency light, home appliance electrical products etc.

Specifications:

Input	Rated Input Voltage	AC100~240V
	Input Voltage Range	AC 90~264V
	Rated Frequency	50/60 Hz
	Input Frequency Range	47~63 Hz
	Input AC Current	0.2A
	Inrush Current	30A
Output	Rated Output Voltage	DC5V
	Rated Output Current	1000mA
	Rated Power	5W
	Ripple and Noise	150mV p-p
	Standby Power Consumption	0.3W
	Turn-on	5s
	Hold-up	20s
	Over Voltage Protection	Yes
	Over Current Protection	Yes
	Short Circuit Protection	Yes, automatically recover after short circuit removed.
Reliability	Hi-pot	3000Vac
	Insulation Resistance	Input to output at 500Vdc
	Leakage Current	5mA
	EMI Standards	FCC Part 15B Class B
	RoHS Compliant	Yes
	MTBF	50,000 hours
	Burn-in	40+/-5 ℃, full load, 12 hours
	Drop Test	6 direction, each one time from height 1.0M
Environmental	Operating Temperature	0~40℃
	Operating Humidity	10~80%
	Storage Temperature	-20~65℃
	Storage Humidity	0~90%
Safety Approvals	CE, RoHS, FCC, UL, SAA
Warranty	2 Years
