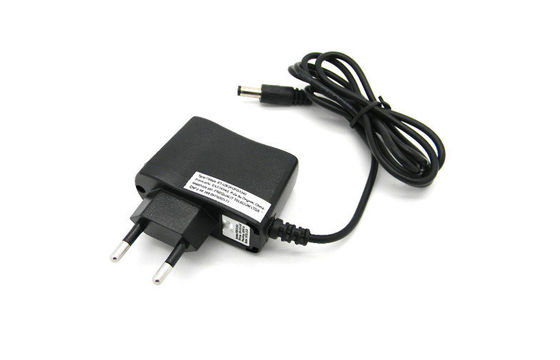

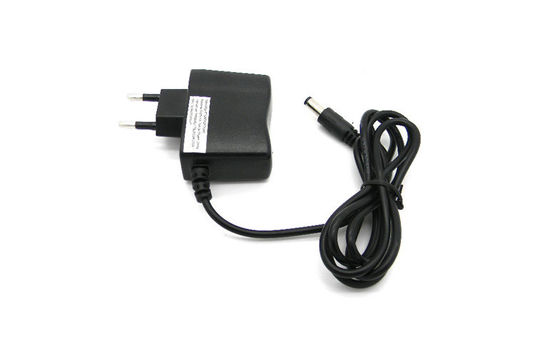

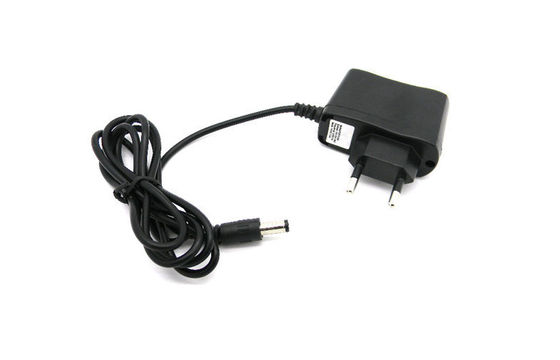

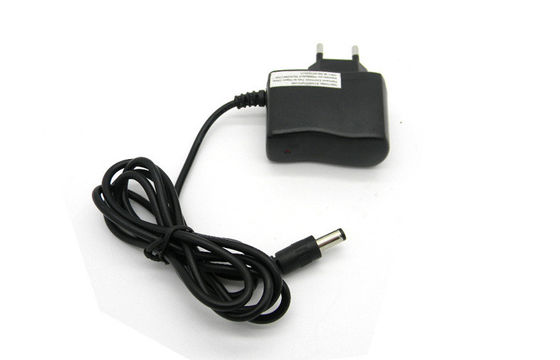

12V 200mA Wall Mount Power Supply FCC Certified For Telephones , 1.2M

পণ্যের বিবরণ:

Place of Origin:	Shenzhen,China
পরিচিতিমুলক নাম:	RAYTOP
সাক্ষ্যদান:	CE, RoHS, FCC
Model Number:	ET1200200

প্রদান:

Minimum Order Quantity:	2K
মূল্য:	Negotiable
Packaging Details:	PE Bag, Master Carton, Customer package available.
Delivery Time:	15-20 work days.
Payment Terms:	T/T, L/C
Supply Ability:	200,000 Pcs monthly.

যোগাযোগ

বিস্তারিত পণ্যের বর্ণনা

AC Cable:	1.2M	Application:	Telephones, Printer
Approval:	CE, RoHS, FCC, UL, SAA	Cable Material:	Copper
DC Cable:	1.2M	EMI Standards:	FCC Part 15 Class B
Feature:	Constant Current	Frequency:	50Hz / 60Hz
Input:	AC100-240V	Operating Temperature:	0~40℃
Output:	12V	Plug:	EU, US, UK, SAA, CCC
Product Name:	wall mount power supply	Protection:	Short Circuit, Over Voltage, Over Current
লক্ষণীয় করা:	ac to dc power converter , wall plug adapter

12V 200mA Wall Mount Power Supply FCC Certified For Telephones , 1.2M

Quick Detail:

Switching mode power adapter, DC12V 200mA, in conformity with CE, RoHS, FCC certification, plug in power adapter.

Specs:

Input: AC100-240V, 1.2A max.

Frequency: 50/60Hz

Output: DC12V, 200mA

DC Cable: 24AWG, Copper, length: 1.2M

Plug: EU, UK, US, SAA, CCC

Features:

-High efficiency:>85%;

-Protection: Short circuit protection, over voltage protection, over current protection.

-MTBF: 50,000 hours.

Approval: CE, RoHS, FCC

Warranty: 2 years

Description:

This is an universal AC adapter come with single output tip 5.5x2.1x10mm. It has high efficiency as well as steady performance. The tip size and plug type can be changeable.

Note:

Indoor use only.

Applications:

widely used for electronic clock, small appliance, dust cleaner, game machine, security equipment etc.

Specifications:

Input	Rated Input Voltage	AC100~240V
	Input Voltage Range	AC 90~264V
	Rated Frequency	50/60 Hz
	Input Frequency Range	47~63 Hz
	Input AC Current	0.2A
	Inrush Current	30A
Output	Rated Output Voltage	DC12V
	Rated Output Current	200mA
	Rated Power	3W
	Ripple and Noise	150mV p-p
	Standby Power Consumption	0.3W
	Turn-on	5s
	Hold-up	20s
	Over Voltage Protection	Yes
	Over Current Protection	Yes
	Short Circuit Protection	Yes, automatically recover after short circuit removed.
Reliability	Hi-pot	3000Vac
	Insulation Resistance	Input to output at 500Vdc
	Leakage Current	5mA
	EMI Standards	FCC Part 15B Class B
	RoHS Compliant	Yes
	MTBF	50,000 hours
	Burn-in	40+/-5 ℃, full load, 12 hours
	Drop Test	6 direction, each one time from height 1.0M
Environmental	Operating Temperature	0~40℃
	Operating Humidity	10~80%
	Storage Temperature	-20~65℃
	Storage Humidity	0~90%
Safety Approvals	CE, RoHS, FCC, UL, SAA
Warranty	2 Years
