Gaoxin ইন্ডাস্ট্রিয়াল পার্ক, Guangming নতুন জোন, সেন্জ়েং শহর, গুয়াংডং প্রদেশের, চীন | Angelwang66@126.com |
Place of Origin: | Shenzhen,China |
পরিচিতিমুলক নাম: | RAYTOP |
সাক্ষ্যদান: | CE, RoHS, FCC |
Model Number: | ET0500200 |
Minimum Order Quantity: | 2K |
---|---|
মূল্য: | Negotiable |
Packaging Details: | PE Bag, Master Carton, Customer package available. |
Delivery Time: | 15-20 work days. |
Payment Terms: | T/T, L/C |
Supply Ability: | 200,000 Pcs monthly. |
AC Cable: | 1.2M | Application: | Printer, ADSL, SATA |
---|---|---|---|
Approval: | CE, RoHS, FCC, UL, SAA | Cable Material: | Copper |
DC Cable: | 1.2M | EMI Standards: | FCC Part 15B |
Feature: | High Efficency | Input: | AC100-240V |
Operating Temperature: | 0~40℃ | Output: | DC5V |
Output Power: | 10Watt | Plug: | EU, US, UK, SAA, CCC |
Product Name: | AC To DC Power Adapter | Protection: | Short Circuit, Over Voltage, Over Current |
লক্ষণীয় করা: | ac to dc power converter,wall plug adapter |

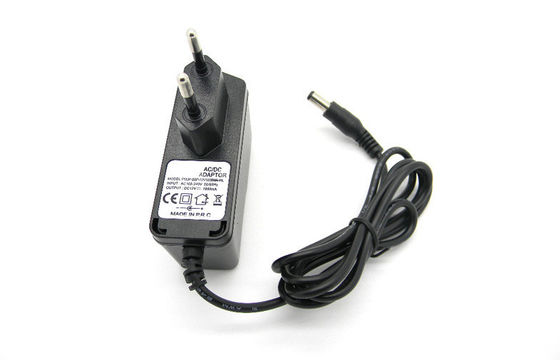

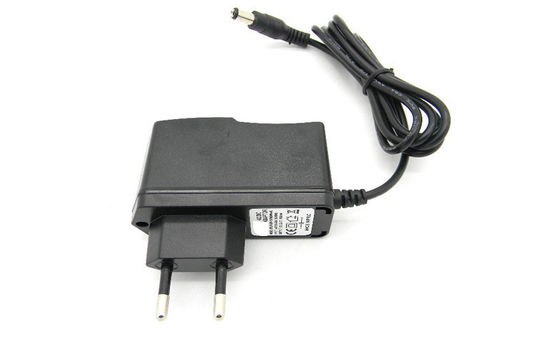

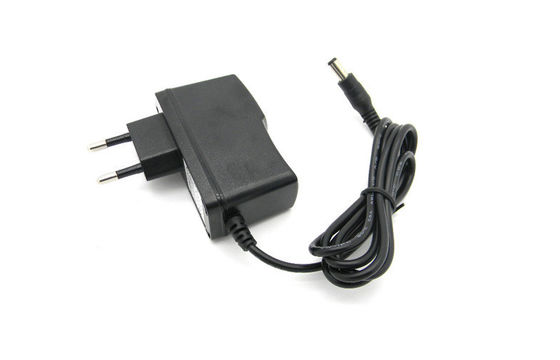

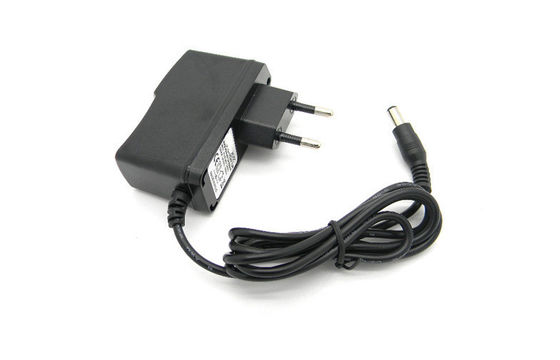

10Watt Switching AC To DC Power Adapter Wall Mount For SATA
Quick Detail:
10Watt Switching Power Adaptor, Desktop Style, DC 5V,2000A, 5.5x2.1mm Connector.
specs:
Input: AC100-240V, 1.2A max.
Frequency: 50/60Hz
Output: DC5V, 2000mA
DC Cable: 22AWG, Copper, length: 1.2M
Plug: EU, UK, US, SAA, CCC
Tip: 5.5x2.1mm (optional)
Approval: CE, RoHS, FCC, UL, SAA
Warranty: 2 years
Description:
This is an AC to DC wall-mount power adapter come with single output tip 5.5x2.1x10mm. It has high efficiency as well as steady performance. The tip size and plug type can be changeable.
Note:
indoor use only.
Applications:
widely used for LED light, SATA, ADSL, digital photo frame, printer etc.
Specifications:
Input |
Rated Input Voltage |
AC100~240V |
Input Voltage Range |
AC 90~264V |
|
Rated Frequency |
50/60 Hz |
|
Input Frequency Range |
47~63 Hz |
|
Input AC Current |
0.2A |
|
Inrush Current |
30A |
|
Output |
Rated Output Voltage |
DC5V |
Rated Output Current |
2000mA |
|
Rated Power |
10W |
|
Ripple and Noise |
120mV p-p |
|
Standby Power Consumption |
0.3W |
|
Turn-on |
5s |
|
Hold-up |
20s |
|
Over Voltage Protection |
Yes |
|
Over Current Protection |
Yes |
|
Short Circuit Protection |
Yes, automatically recover after short circuit removed. |
|
Reliability |
Hi-pot |
3000Vac |
Insulation Resistance |
Input to output at 500Vdc |
|
Leakage Current |
5mA |
|
EMI Standards |
FCC Part 15B Class B |
|
RoHS Compliant |
Yes |
|
MTBF |
50,000 hours |
|
Burn-in |
40+/-5 ℃, full load, 4 hours |
|
Drop Test |
6 direction, each one time from height 1.0M |
|
Environmental |
Operating Temperature |
0~40℃ |
Operating Humidity |
10~80% |
|
Storage Temperature |
-20~65℃ |
|
Storage Humidity |
0~90% |
|
Safety Approvals |
CE, RoHS, FCC, UL, SAA |
|
Warranty |
2 Years |
Competitive Advantage:
-Open private model w/o extra cost for you;
-0.3% free backup of order quantity;
-Direct factory price without middle man.
-High performance-to-price ratio;
-Perfect after-sale service
