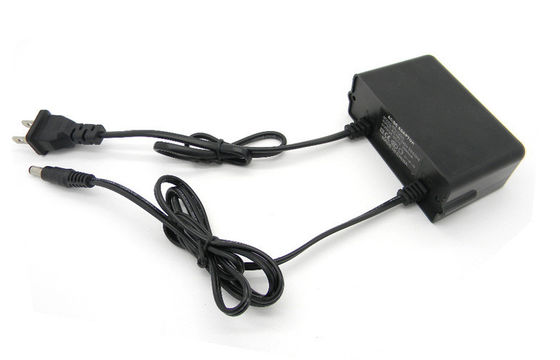

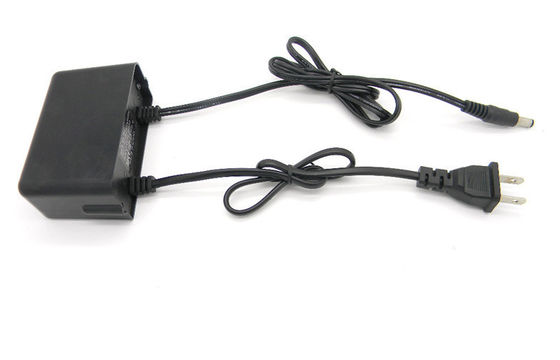

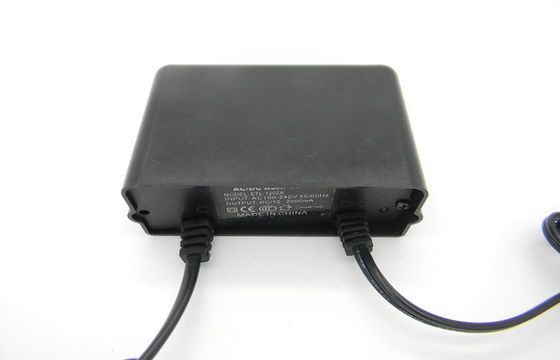

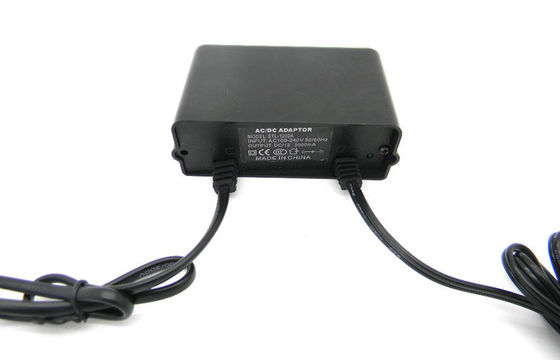

High Voltage CCTV AC To DC Power Adapter 40W DC12V 3Amp 6 Channel , RoHS Approval
Quick Detail:
1. AC input range selected by switch
2. Protections: short circuit/ overload/ over voltage/ over temperature
3. High efficiency, low working temperature
4. Withstand 300vac surge input for 5 second
5. Built-in EMI filter, low ripple noise
6. 100% burn-in test, at full load
7. LED indicator for power on or off
8. Fixed switching frequency at 25KHZ
9. Low cost, high reliability
10.2 years warranty
Description:
12VDC 3A 6CH for 6 Out premium CCTV power supply unit.
The CCTV power supply is primarily designed for WUF-GV, PTZ and camera of CCTV system. It’s also used for access, building/house control, intrude alarm and other light-current. It is for desktop or wall-mounted installation.
Applications:
1) Suitable for industrial equipment, security monitoring.
2) Suitable for LED billboard, LED lighting.
3) Suitable for medical treatment, CCTV camera power supply.
4) Widely used in any other area.
Specifications:
|
Max output power
|
40W
|
|
Input
|
Input Voltage
|
AC100-240V
|
|
Input Voltage Frequency
|
50/60Hz
|
|
Input Current
|
Max.1.3A
|
|
Efficiency
|
>85%
|
|
Inrush Current
|
Cold Start Curren 40A/240Vac
|
|
Leakage Current
|
＜3.5mA/240VAC
|
|
Output
|
Output Voltage
|
DC12V
|
|
Total Output Current
|
3A(500mA/Output, 6 Channels for 6 sets security camera)
|
|
Output Ripple
Noise(Vp-p)
|
80mVp-p@25℃/
Rated input voltage & Rated output load
|
|
Fuse Type
|
Glass fuse
|
|
Fuse Rating
|
1Amps/250VAC
|
|
Start time, rise time, hold on
|
1000ms,30ms,50ms/240VAC.
|
|
Protection
|
Short Circuit Protection
|
When short-circuit occurs, the individual PTC fuse will break the circuit. When the fault is cleared, it will switch back to normal automatically.
|
|
High Voltage Protection
|
When over voltage occurs, it will switch to self-protection status to
protect the load.
|
|
Over Current Protection
|
When over current occurs,
the corresponding
channel output will automatically switch to self-protection status, and the other channels output will work normally. When the fault is cleared, it will switch back to normal.
|
|
Circumstances
|
Working Temperature
|
0℃-+50℃
|
|
Storage Temperature
|
-20℃-+80℃
|
|
RH
|
20%-90%
|
|
Heat Release
|
Natural heat dissipation
|
|
Dielectric strength
|
Input to output
|
1500Vac/60S leakage current≤1.5mA
|
|
Input to FG
|
1500Vac/60S leakage current≤2.0mA
|
|
FG to output
|
500Vac/60S leakage current≤1.5mA
|
|
Insulating Strength
|
Input to output
|
≥20MΩ/500VDC@25℃
|
|
RG
|
≤0.011Ω@DC8V/25A/25℃
|
|
Safety EMC
|
Safety Standards
|
UI60950 EN60950
|
|
EMI
|
EN55011 class B
EN55022 class B
|
|
EMS Immunity
|
EN55024 EN61000-6-2
|
|
Harmonic Current
|
EN61000-3-2
|
Competitive Advantage:
-100 ～ 240VAC Worldwide Input Voltage range;
-Compact design, light weight and high efficiency;
-Short Circuit Protection, Over Current Protection, Over Load Protection;
-Customer design model;
-Factory direct price w/o middle man;
-0.3% backup of order quantity free of charge.
