Place of Origin: | China |
পরিচিতিমুলক নাম: | G-ORIENT |
সাক্ষ্যদান: | ISO9001 / CE / ROHS / FCC |
Model Number: | NHI600-12 |
Minimum Order Quantity: | 10pcs |
---|---|
মূল্য: | negotiable |
Packaging Details: | 10pcs/21Kgs / CARTONS |
Delivery Time: | 10 working days after received your payment |
Payment Terms: | T/T, Paypal, L/C, Western Union |
Supply Ability: | 50,000pcs per month |
High efficiency: | 81% | Application: | Indoor |
---|---|---|---|
Operating temperature: | -40℃ ~ +60℃ | IP Grade: | IP20 |
Case material: | Metal, aluminium | Output power: | 600W |
Input: | 200-240V AC | Output: | 12V DC / 50A |
লক্ষণীয় করা: | ac to dc power converter,ac to dc converter |

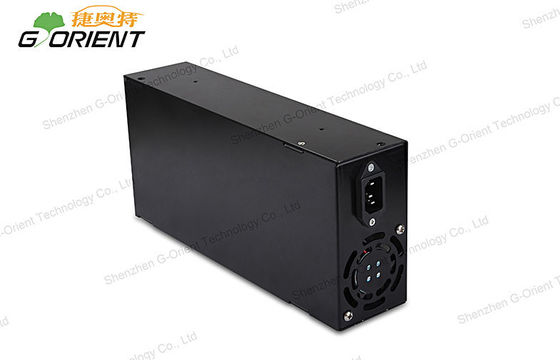

600 Watts Single Output AC DC Converter 12V 50A Switching Power Supply
Features:
* Protections:Short circuit / Overload / Over voltage / Over temperature
* Built-in constant current limiting circuit
* Low cost,high reliability
* 2 years warranty
Applications:
* Products can be used to street lamps, lawn lamps, sunlight lamps, LED lighting
* Adornment: LED lamp, LED luminaire , LED strips, LED screens, advertisement screens
* Industrial electrical products, machinery and electrical equipment, security system, air purifier
Specifications:
Switching power supply |
NHI600-12 |
|
OUTPUT |
DC Voltage |
12V |
Current Range |
0~50A |
|
Rated Current |
50A |
|
Rated Power |
600W |
|
Ripple & Noise(max.) |
<150mVp-p |
|
Voltage ADJ.Range |
10~13.5V |
|
Voltage Tolerance |
+/- 1.0% |
|
Line Regulation |
+/- 0.5% |
|
Load Regulation |
+/- 0.5% |
|
Setup,Rise Time |
1000ms,50ms/230VAC |
|
Hold up time |
20ms/230VAC |
|
INPUT |
Voltage Range |
200-240VAC |
Frequency Range |
47-63Hz |
|
Efficiency(Typ.) |
83-88% |
|
AC Current |
7.5A/230VAC |
|
Inrush Current(max.) |
60A/230VAC |
|
Leakage Current |
< 2.0mA /240VAC |
|
Protection |
Over Load |
105 ~ 125% rated output power |
Protection type: Constant current limiting,recovers automatically after fault condition is removed |
||
Over Voltage |
13.8~ 16.2V |
|
Protection type: Shut down O/P voltage,re-power on to recover |
||
Over Temperature |
85℃ +/- 5℃ |
|
Protection type: Shut down O/P voltage,recovers automatically after temperature goes down |
||
|
||
Environment |
Working Temp. |
-40 ~ +60℃ (Refer to output load derating curve) |
Working Humidity |
20 ~ 90% RH, non-condensing |
|
Storage Temp., Humidity |
-40 ~ +85℃, 10 ~ 95% RH |
|
Temp.Coefficient |
+/-0.05%/℃ (0 ~ 50℃) |
|
Vibration |
10 ~ 500Hz, 2G 10min./1 cycle,60min. Each along X, Y, Z axes |
|
Safety |
Safety standards |
UL60950-1 approved |
Withstand Voltage |
I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC |
|
Isolation Resistance |
I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC / 25℃ / 70% RH |
|
Others |
MTBF |
>197K hrs min. MIL-HDBK-217F(25℃) |
Dimension |
260*140*65mm (L*W*H) |
|
Packing |
2.1kg; 10pcs/21Kgs |
|
Note |
1. All parameters NOT specially mentioned are measured at 230VAC input,rated load and 25℃ of ambient temperature. |
|
2. Ripple & noise are measured at 20Mhz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1uf & 47 uf parallel capacitor. |
||
3. Tolerance: includes set up tolerance,line regulation and load regulation. |
||
|
Competitive Advantage:
* Ultra-low start up temp.(- 20℃)
* High efficiency up to 85%
* Small size,ultra-light and easy to install
* CE / ROHS / FCC approval
* 2-3 years warranty
* Protections:Short circuit / Overload / Over voltage / Over temperature
Company Advantage:
* High quality products
* Short lead time
* Professional R&D team
* Standardized production process
