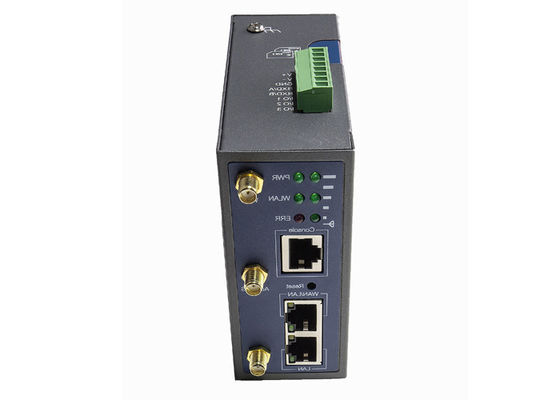

Wall Mount / DIN Rail Mount OpenVPN wireless router , LTE 4G Dual SIM Wireless Router


Industrial communication LTE 4G OpenVPN wireless router , Dual SIM Input Output


With multiple connectivity options, the WL-R210LH-d under R210 series router is a rugged and versatile router suitable for a diverse range of industrial M2M applications. It can provide solutions for industrial applications including video streaming, monitoring, broadcast and vehicle telemetry. the R210 router is an adaptable, multi-purpose device for all your data needs.

The WL-R210LH-d features dual-SIM capabilities which provides advanced redundancy functionality.

It aslo optional  features GPS capability, enable it ideal for fleet tracking or access management.

As a special highlight WLINK R210 router offers two Ethernet ports that are highly configurable. Used as LAN ports they form a two port switch or have separated, routed IP networks. Configured as WAN port, an external modem or land line can be attached in order to add redundancy.

The RS-232 serial interface can act as serial device server or system console. Legacy equipment that does not have any Ethernet or USB port can be hooked up this way. Furthermore, the serial line can be assigned to the SDK and be controlled from there.

The router firmware supports common VPN technologies such as IPsec and OpenVPN. Simple handling of a Public key infrastructure makes is easy to connect two router trough a VPN tunnel.

Further services include DHCP server, DNS proxy server, DDNS agent, SNMP agent, telnet server, SSH server, web server, e-mail client and SMS client. The device is administrated via an easy to use web GUI or the command line interface. Over the air software update is both easy and fail-safe.


Basic Feature

• Industrial robust design and compact metal housing
• High data speed via 4G and 3G network, 2.5G backward compatible
• Dual SIM for redundancy between two network
• Strong electromagnetic interference Resistance
• Heat endurance and radiation ability
• Built-in watch dog, Multi-link detection
• Ultra security, VPN: OpenVPN, PPTP, L2TP, GPE, IPSec VPN
• 802.11b/g/n Wi-Fi support, 150Mbps data rate
• High Reliability: Hardware l ink self-recovery
• WAN port support PPPoE, static IP, DHCP client.
• Failover or Backup between WAN and Cellular
• Always online, reboot automatically if disconnected to ensure continual connection
• Support APN and VPDN wireless private network access in
• LCP/ICMP/flow/heartbeat check, ensure network usability
• Web/CLI/SSH/Management platform support, easy configure
• SNMP network management, NTP support
• Local & remote management (configuration, status, upgrade firmware)
• Supports DHCP Server
• Supports DNS proxy and Dynamic DNS (DDNS)
• Supports timing operation
• Supports LED status indication
• Shock and vibration resistant


   Advance Optional Feature

• Optional Network Type includes LTE / HSPA+ / HSPA /UMTS / WCDMA 3G and EVDO 3G.
• GPS capability optional for fleet management or other tracking application
• Dual SIM Dual Module optional available for fast switch and backup between two network
• DTU serial communication function optional
• M2M Management platform software option al available
• OpenVPN Optional
• OpenWRT Optional
• PPTP Sever optional
• Schedule reboot optional
• Customized acceptable


Specification




Applications:




Competitive Advantage:

• WLINK Router are Industrial grade design which can endure high and low temperature and other extreme application environment
• WLINK has ability to produce a quality product at a economic cost to meet the market and project requirement.
• Strong R&D Team who have 10+ year experience in M2M cellular field
• WLINK always provide the best pre-sale and after sale service to customer

Package:
